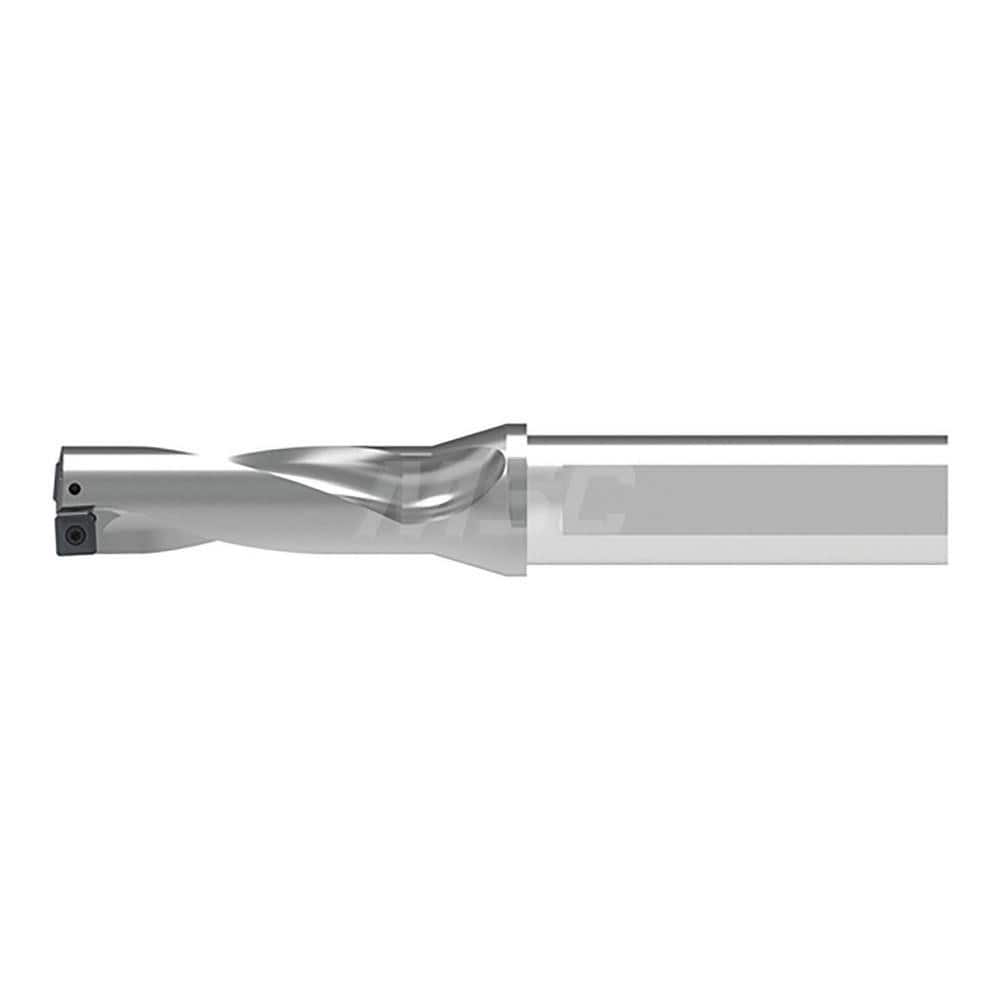

Indexable Insert Drills; Drill Style: KUBQ; Drill Diameter (Decimal Inch): 0.7180; Drill Diameter (Inch): 23/32; Maximum Drill Depth (Decimal Inch): 2.2440; Shank Type: Weldon; Shank Diameter (Inch): 1; Shank Diameter (Decimal Inch): 1.0000; Drill Diamete
Item #: 11630332
Brand: Komet
Model #: 1588018200
Product Specifications
| Drill Style | KUBQ |
| Drill Diameter (Decimal Inch) | 0.7180 |
| Drill Diameter (Inch) | 23/32 |
| Maximum Drill Depth (Decimal Inch) | 2.2440 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 15880 |
| Flute Length (Decimal Inch) | 2.2440 |
| Body Length (Decimal Inch) | 3.1890 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 6.4390 |
| Collar Diameter (Decimal Inch) | 1.1800 |
| Extension From Holder (Inch) | 3.1890 |
| Coolant Through | Yes |
