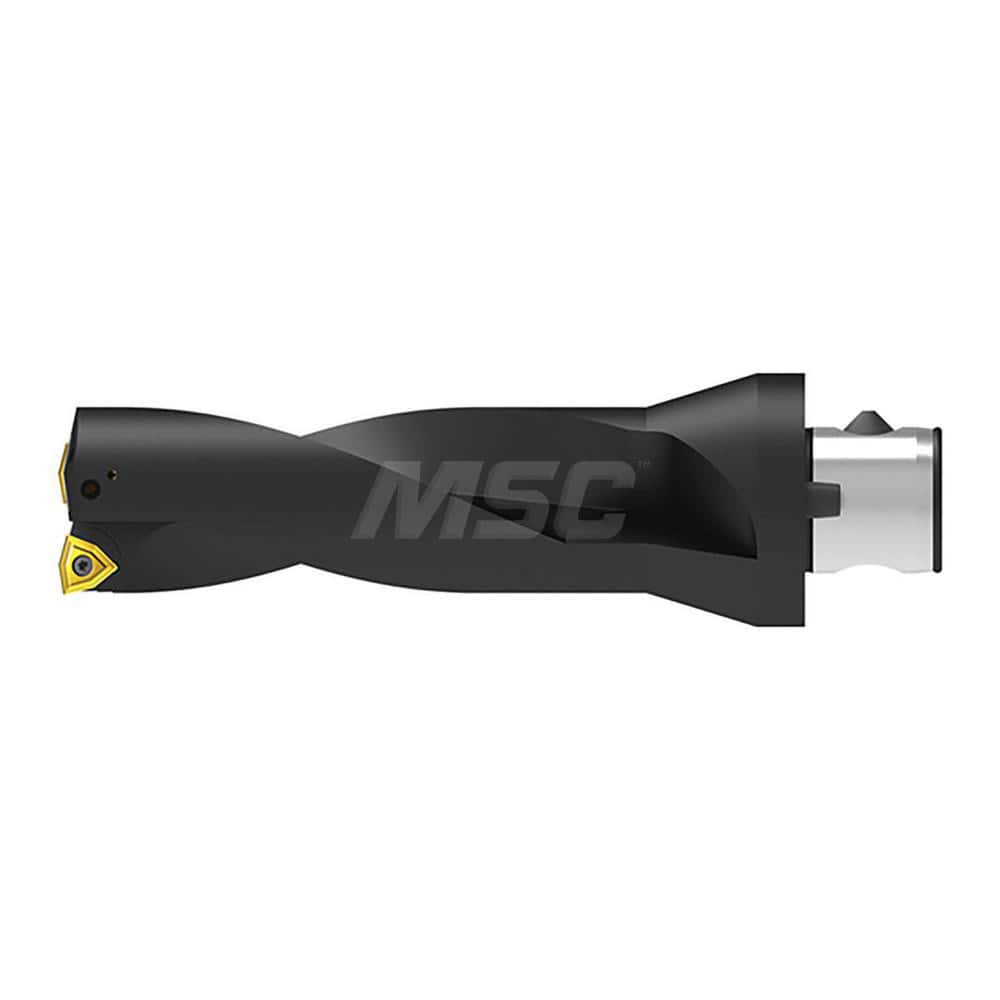

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 2.5591; Drill Diameter (mm): 65.00; Maximum Drill Depth (mm): 195.00; Shank Type: Modular Connection; Shank Diameter (mm): 46.00; Drill Diameter Range (Decimal Inch): 2.0000 to 3.0
Item #: 11626983
Brand: Komet
Model #: 1089365098
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 2.5591 |
| Drill Diameter (mm) | 65.00 |
| Maximum Drill Depth (mm) | 195.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 46.00 |
| Drill Diameter Range (Decimal Inch) | 2.0000 to 3.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10893 |
| Flute Length (mm) | 195.00 |
| Body Length | 250.00 |
| Shank Length (mm) | 43.00 |
| Modular Connection Size | ABS 80 |
| Overall Length/Projection (mm) | 293.00 |
| Collar Diameter (mm) | 80.00 |
| Coolant Through | Yes |
