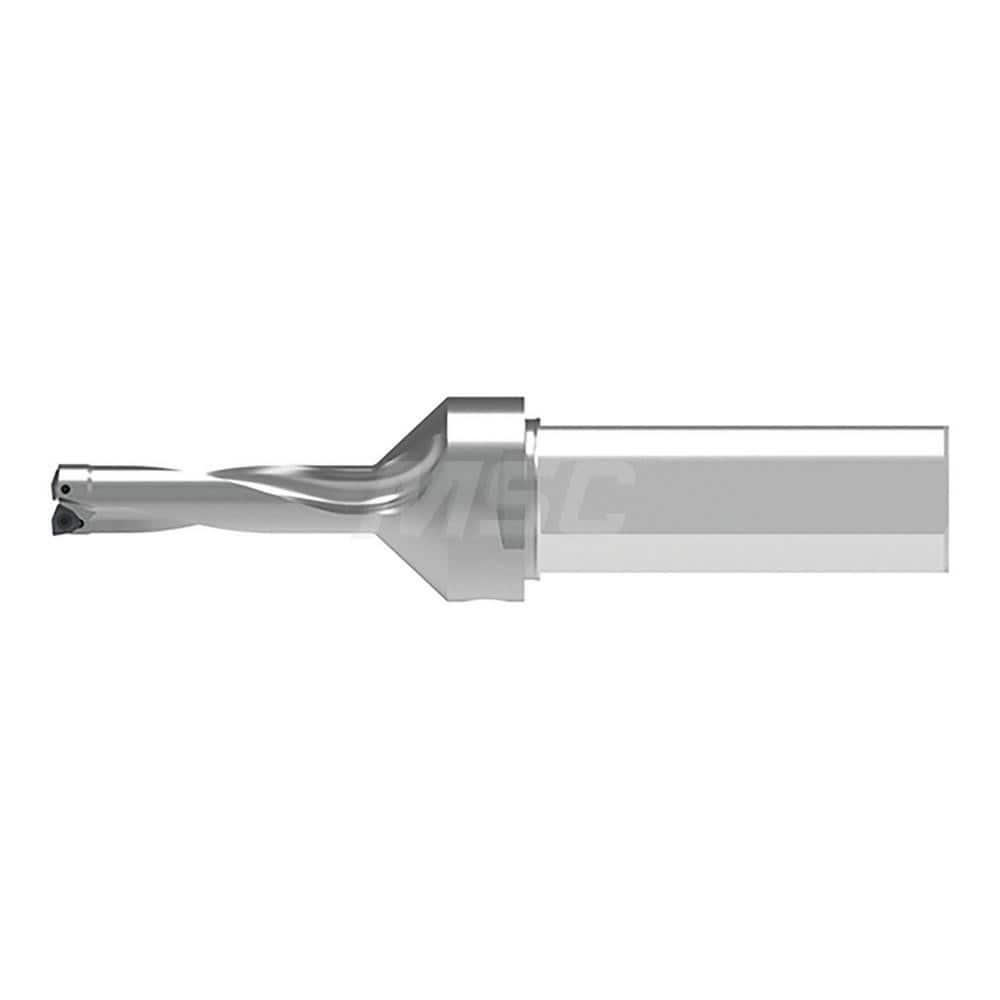

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 1.1090; Drill Diameter (Inch): 1-7/64; Maximum Drill Depth (Decimal Inch): 4.4360; Shank Type: Weldon; Shank Diameter (Inch): 1-1/4; Drill Diameter Range (Decimal Inch): 1.0000 to
Item #: 11626538
Brand: Komet
Model #: 1589428201
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 1.1090 |
| Drill Diameter (Inch) | 1-7/64 |
| Maximum Drill Depth (Decimal Inch) | 4.4360 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15894 |
| Flute Length (Decimal Inch) | 4.4360 |
| Body Length (Decimal Inch) | 5.8140 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 9.0640 |
| Collar Diameter (Decimal Inch) | 1.5750 |
| Extension From Holder (Inch) | 5.8140 |
| Coolant Through | Yes |
