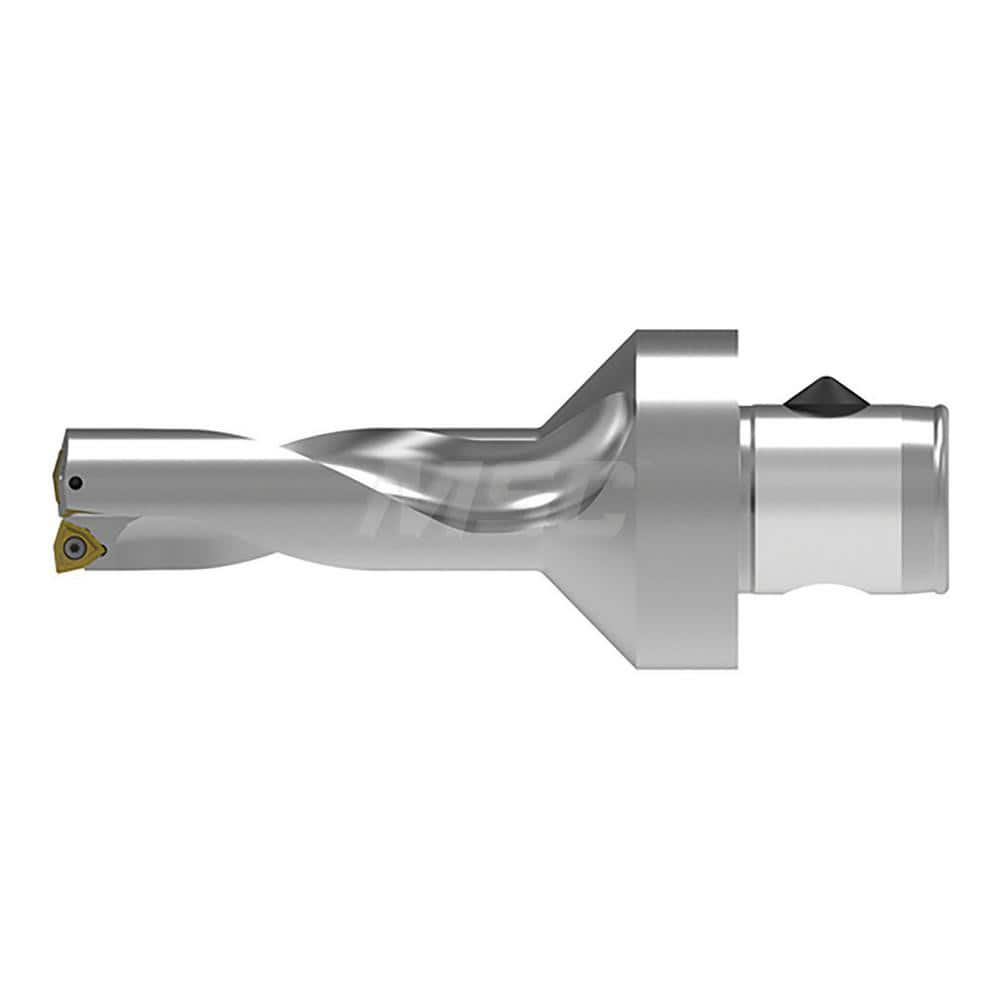

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 1.6142; Drill Diameter (mm): 41.00; Maximum Drill Depth (mm): 123.00; Shank Type: Modular Connection; Shank Diameter (mm): 28.00; Drill Diameter Range (Decimal Inch): 1.5000 to 2.0
Item #: 11626215
Brand: Komet
Model #: 1089341095
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 1.6142 |
| Drill Diameter (mm) | 41.00 |
| Maximum Drill Depth (mm) | 123.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.00 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10893 |
| Flute Length (mm) | 123.00 |
| Body Length | 173.00 |
| Shank Length (mm) | 31.00 |
| Modular Connection Size | ABS 50 |
| Overall Length/Projection (mm) | 204.00 |
| Collar Diameter (mm) | 50.00 |
| Coolant Through | Yes |
