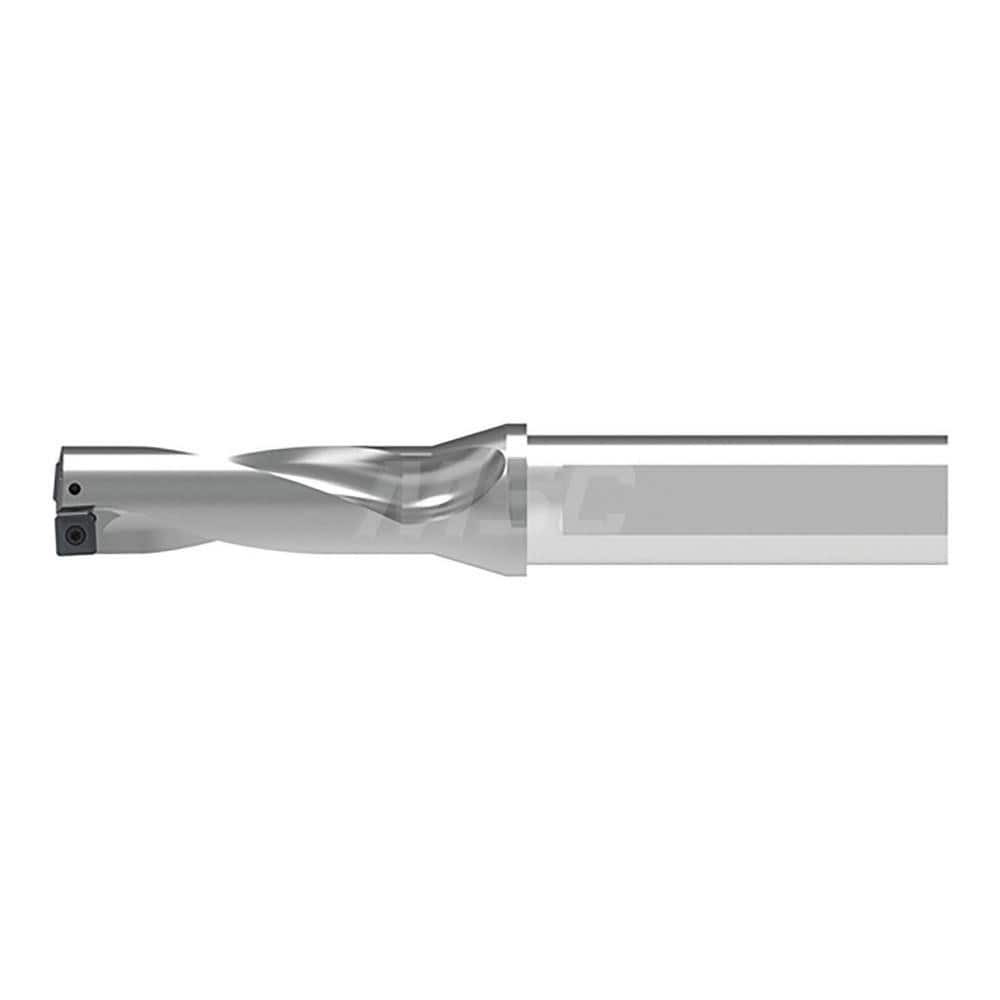

Indexable Insert Drills; Drill Style: KUBQ; Drill Diameter (Decimal Inch): 1.6560; Drill Diameter (Inch): 1-21/32; Maximum Drill Depth (Decimal Inch): 5.0790; Shank Type: Weldon; Shank Diameter (Inch): 1-1/4; Drill Diameter Range (Decimal Inch): 1.5000 to
Item #: 11626074
Brand: Komet
Model #: 1588042101
Product Specifications
| Drill Style | KUBQ |
| Drill Diameter (Decimal Inch) | 1.6560 |
| Drill Diameter (Inch) | 1-21/32 |
| Maximum Drill Depth (Decimal Inch) | 5.0790 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 15880 |
| Flute Length (Decimal Inch) | 5.0790 |
| Body Length (Decimal Inch) | 6.6140 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 9.8640 |
| Collar Diameter (Decimal Inch) | 1.5400 |
| Extension From Holder (Inch) | 6.6140 |
| Coolant Through | Yes |
