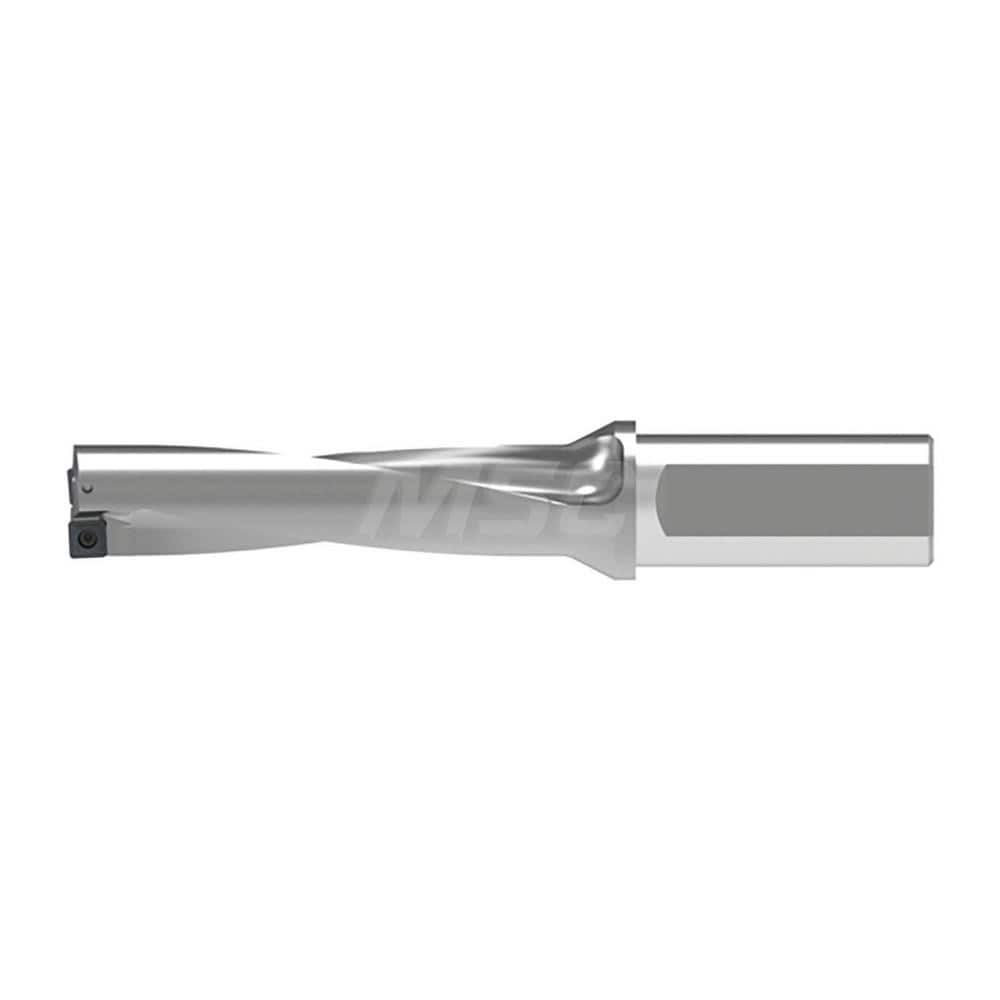

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.5620; Drill Diameter (Inch): 1-9/16; Maximum Drill Depth (Decimal Inch): 6.2990; Shank Type: Weldon; Shank Diameter (Inch): 1-1/2; Drill Diameter Range (Decimal Inch): 1.5000 to
Item #: 11624855
Brand: Komet
Model #: 1587439702
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.5620 |
| Drill Diameter (Inch) | 1-9/16 |
| Maximum Drill Depth (Decimal Inch) | 6.2990 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15874 |
| Flute Length (Decimal Inch) | 6.2990 |
| Body Length (Decimal Inch) | 7.4020 |
| Shank Length (Decimal Inch) | 3.7500 |
| Collar Diameter (Decimal Inch) | 1.9700 |
| Extension From Holder (Inch) | 7.4020 |
| Coolant Through | Yes |
