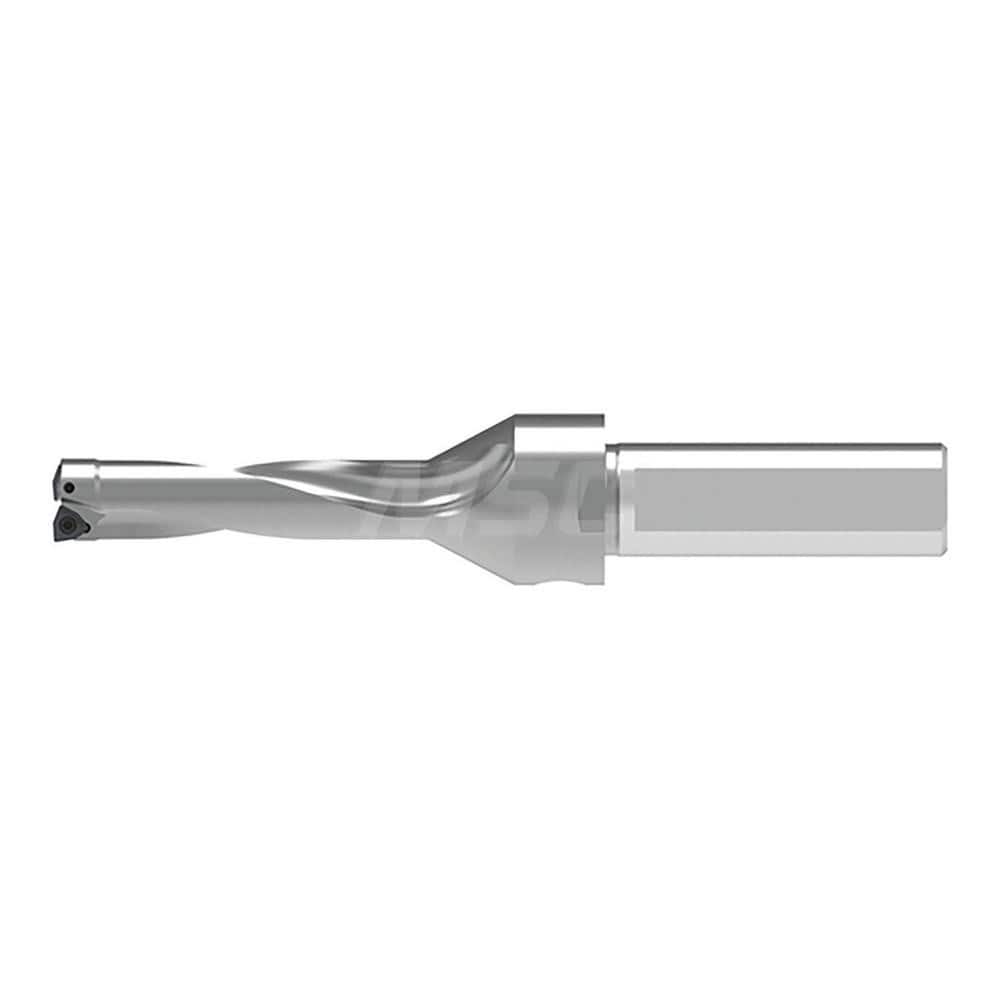

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 0.5620; Drill Diameter (Inch): 9/16; Maximum Drill Depth (Decimal Inch): 2.2480; Shank Type: Weldon; Shank Diameter (Inch): 3/4; Drill Diameter Range (Decimal Inch): 0.0000 to 0.75
Item #: 11624756
Brand: Komet
Model #: 1589414309
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 0.5620 |
| Drill Diameter (Inch) | 9/16 |
| Maximum Drill Depth (Decimal Inch) | 2.2480 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15894 |
| Flute Length (Decimal Inch) | 2.2480 |
| Body Length (Decimal Inch) | 3.6250 |
| Shank Length (Decimal Inch) | 2.2500 |
| Overall Length/Projection (Decimal Inch) | 5.8750 |
| Collar Diameter (Decimal Inch) | 1.1300 |
| Extension From Holder (Inch) | 3.6250 |
| Coolant Through | Yes |
