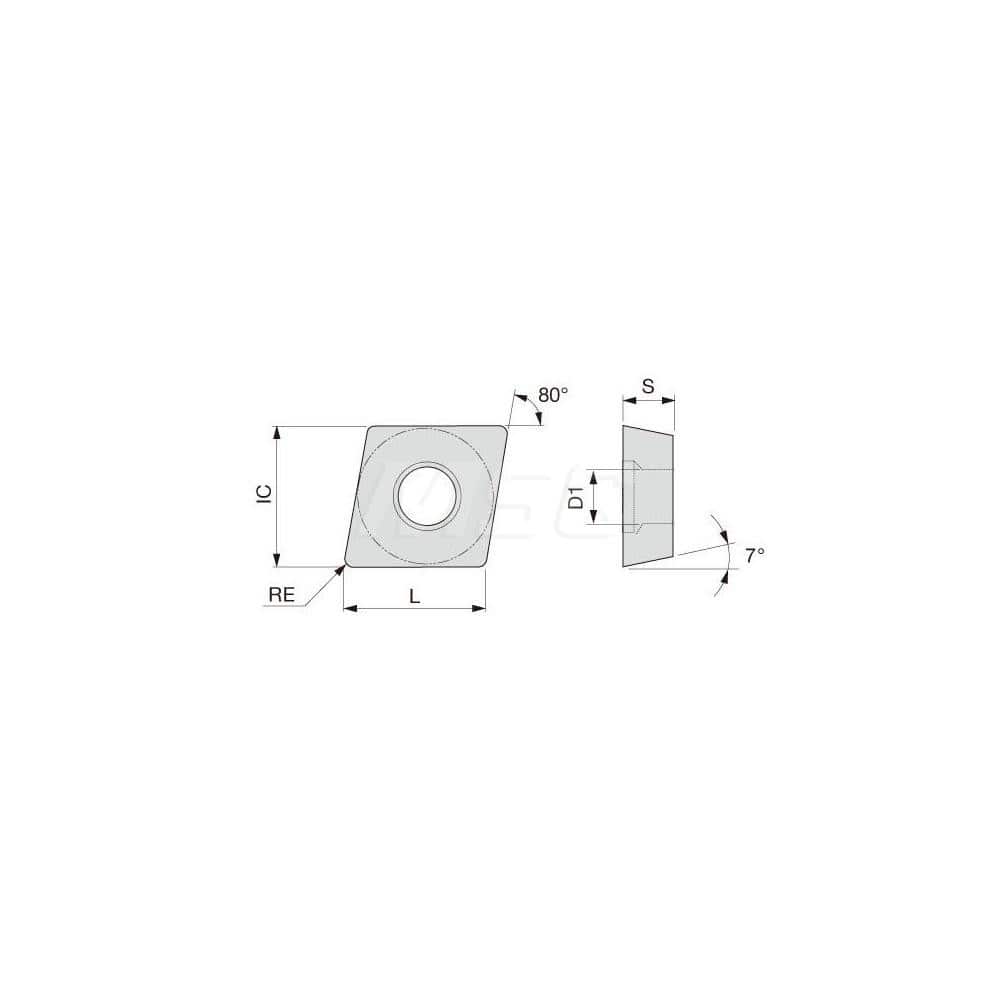

Turning Insert: CCMT32.51PM AH6225, Solid Carbide TiAlN & TiCN Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 80.0 ° N/A Diamond, Series CCMT
Item #: 11497054
Brand: Tungaloy
Model #: 6796244
Product Specifications
| Insert Style | CCMT |
| Insert Size Code | 32.51 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH6225 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | CCMT32.51PMAH6225 |
| Iso Code | CCMT09T304-PM |
| Chip Breaker | PM |
| Coating/Finish | TiCN; TiAlN |
