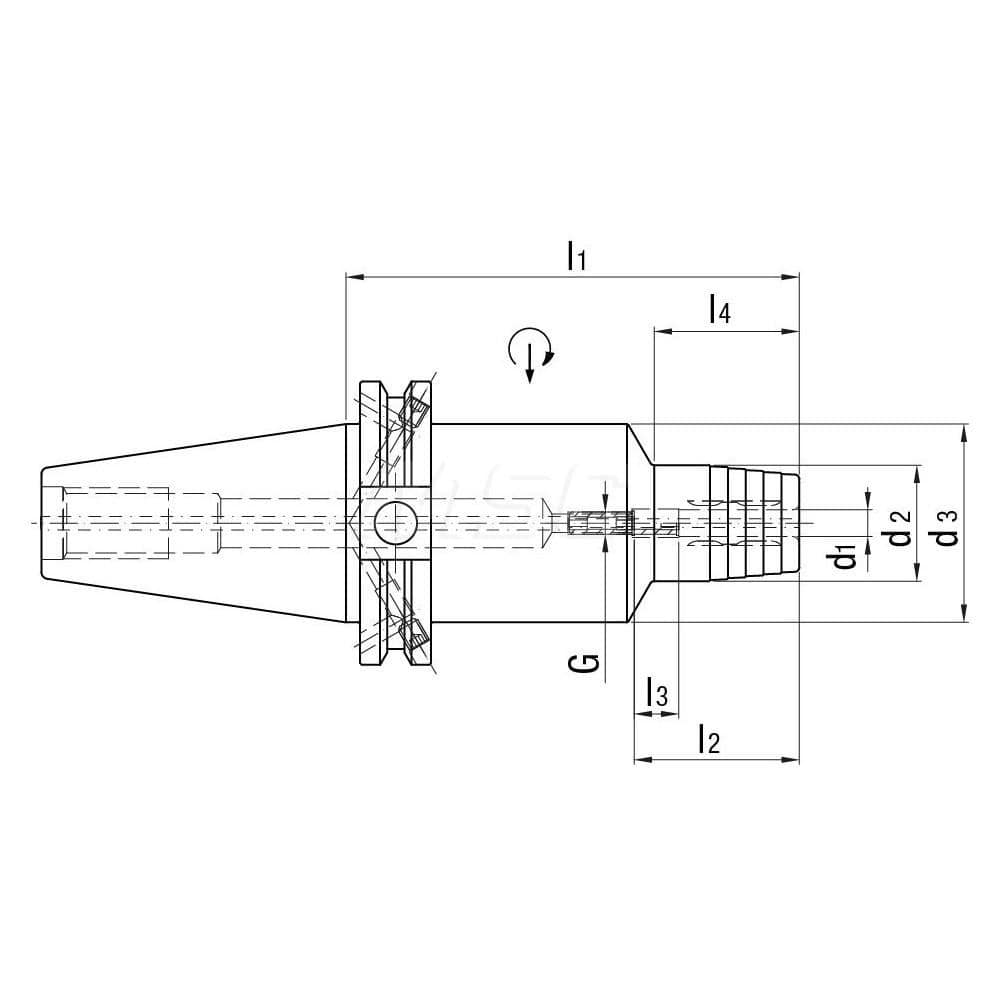

Hydraulic Tool Chuck: CAT50, CAT50, Taper Shank 101 mm Projection, 37.6 mm Nose Dia, 49 mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 11454709
Brand: Mapal
Model #: 30780814
Product Specifications
| Shank Type | Taper |
| Connection Size | CAT50 |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 5/8 |
| Chuck Hole Diameter | 15.875 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.4803 |
| Nose Diameter (Mm) ( - 2 Decimals) | 37.60 |
| Projection (mm) | 101.00 |
| Projection (Decimal Inch - 4 Decimals) | 4.0000 |
| Clamping Depth (mm) | 49.00 |
| Balanced To Rpm | 25000 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.9803 |
| Overall Length (mm) | 203.20 |
| Material | Steel |
| Cutting Direction | Right or Left Hand |
| Number Of Pieces | 1 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 3.9700 |
| Includes | Length Adjustment Screw |
