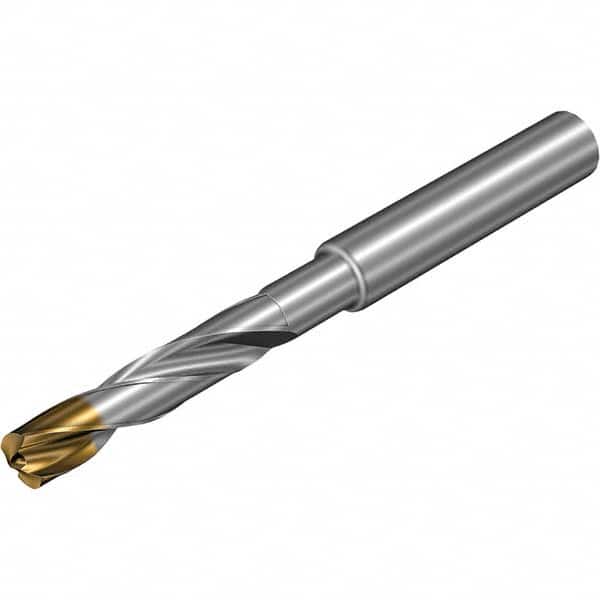

Jobber Length Drill Bit: 0.2677″ Dia, 140 °, Solid Carbide TiAlSiN, TiSiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 11447505
Brand: Sandvik Coromant
Model #: 7781786
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Drill Bit Size (mm) | 6.80 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlSiN/TiSiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 91.00 |
| Flute Length (mm) | 53.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.00 |
| Maximum Drilling Depth (mm) | 35.20 |
| Drill Point Length (mm) | 1.20 |
| Drill Bit Grade | X1BM |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Specification Designation | DIN |
