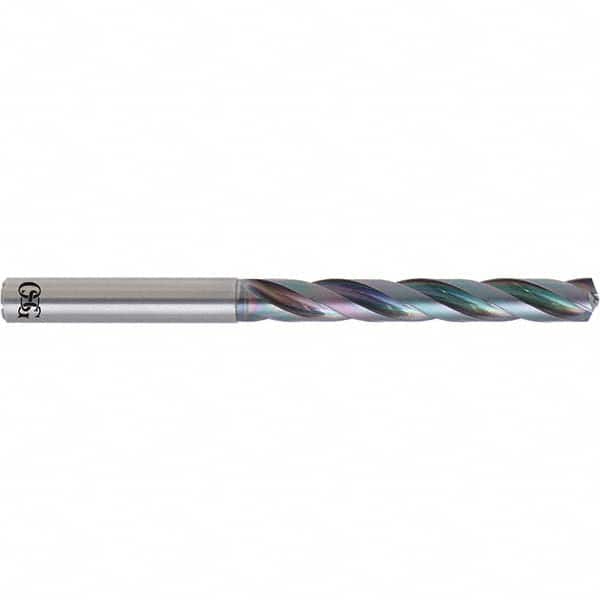

Screw Machine Length Drill Bit: 0.2905″ Dia, 140 °, Solid Carbide EgiAs Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6600
Item #: 11440104
Brand: OSG
Model #: 8720738
Product Specifications
| Drill Bit Size (mm) | 7.38 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | R Thinning |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2905 |
| Overall Length (mm) | 94.00 |
| Overall Length (Decimal Inch) | 3.7008 |
| Shank Diameter (mm) | 8.00 |
| Series | 6600 |
| Point Type | R-Thinned |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 37.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
