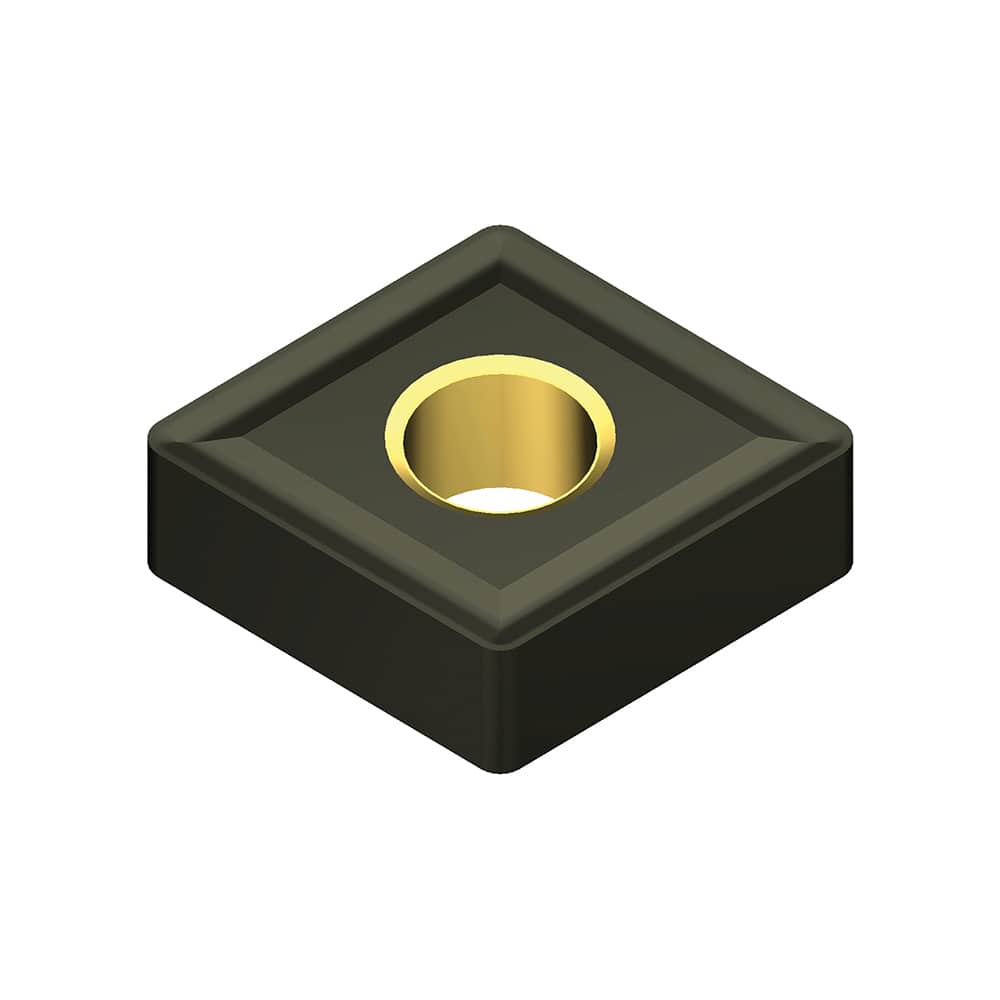

CNMG333EGU-AC4015K Carbide Turning Insert Al2O3/TiCN Finish, 9.7mm Long, 3/8″ Inscribed Circle, 0.0472″ Corner Radius, 0.1874″ Thick, 80° Included Angle, Series AC4000K
Item #: 11098670
Brand: Sumitomo
Model #: 19T2CVW
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 333 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4015K |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | AC4000K |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3819 |
| Insert Length (mm) | 9.70 |
| Iso Code | CNMG090412N-GU |
| Manufacturers Catalog Number | CNMG333EGU-AC4015K |
| Chip Breaker | EGU |
| Coating/Finish | TiCN; Al2O3 |
