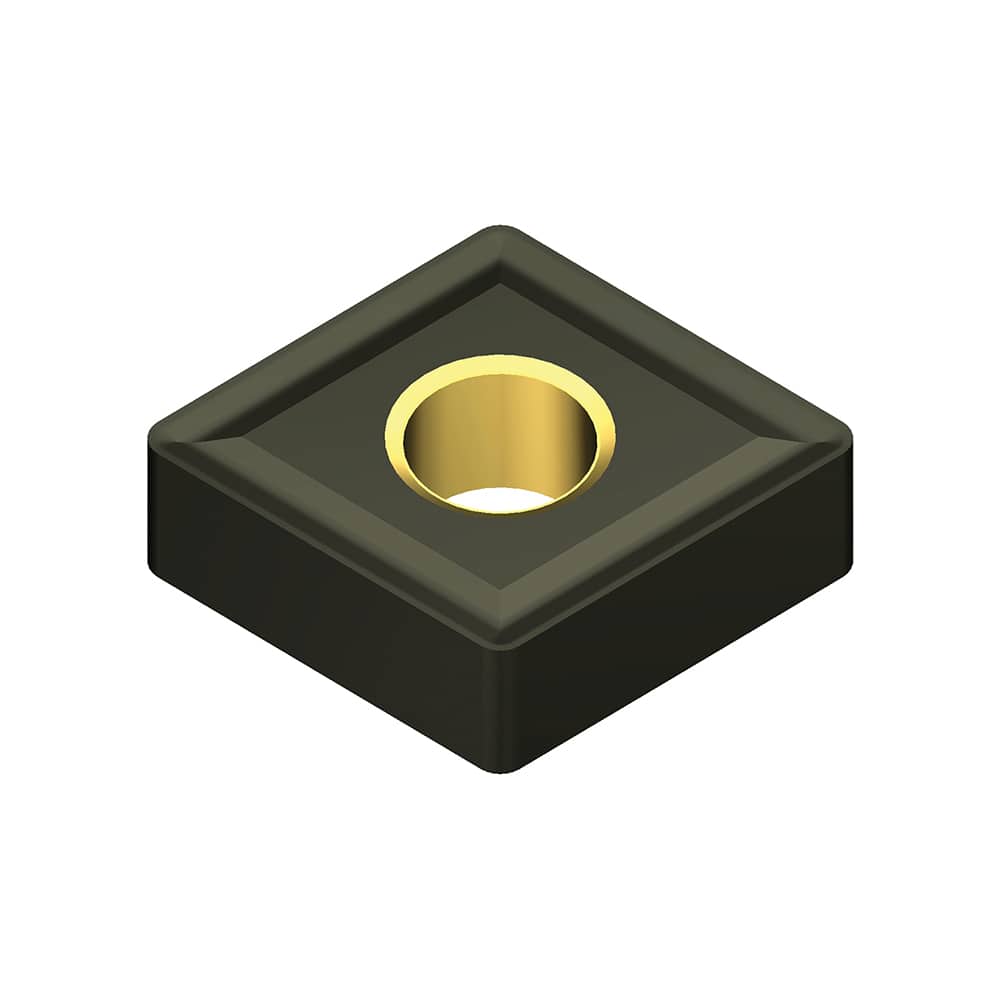

CNMG431ENZ-AC4015K Carbide Turning Insert Al2O3/TiCN Finish, 12.9mm Long, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, 80° Included Angle, Series AC4000K
Item #: 11098027
Brand: Sumitomo
Model #: 19T2116
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4015K |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | AC4000K |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (Decimal Inch) | 0.5079 |
| Insert Length (mm) | 12.90 |
| Iso Code | CNMG120404N-UZ |
| Manufacturers Catalog Number | CNMG431ENZ-AC4015K |
| Chip Breaker | ENZ |
| Coating/Finish | TiCN; Al2O3 |
