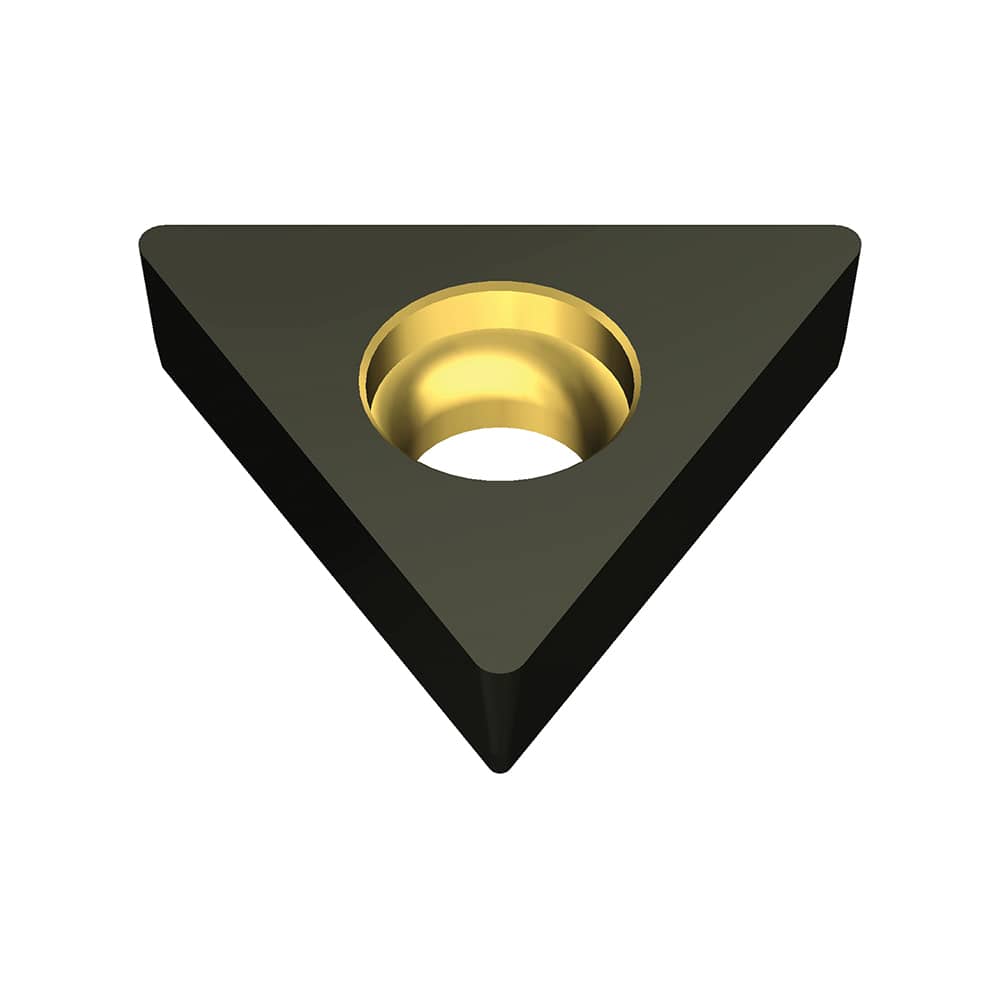

TCMA32.53-AC4015K Carbide Turning Insert Al2O3/TiCN Finish, 16.5mm Long, 3/8″ Inscribed Circle, 0.0472″ Corner Radius, 0.1563″ Thick, 60° Included Angle, Series AC4000K
Item #: 11097870
Brand: Sumitomo
Model #: 19T2BQV
Product Specifications
| Insert Style | TCMA |
| Insert Shape Code | T |
| Insert Size Code | 32.53 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4015K |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | AC4000K |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6496 |
| Insert Length (mm) | 16.50 |
| Iso Code | TCMW16T312 |
| Manufacturers Catalog Number | TCMA32.53-AC4015K |
| Chip Breaker | A |
| Coating/Finish | TiCN; Al2O3 |
