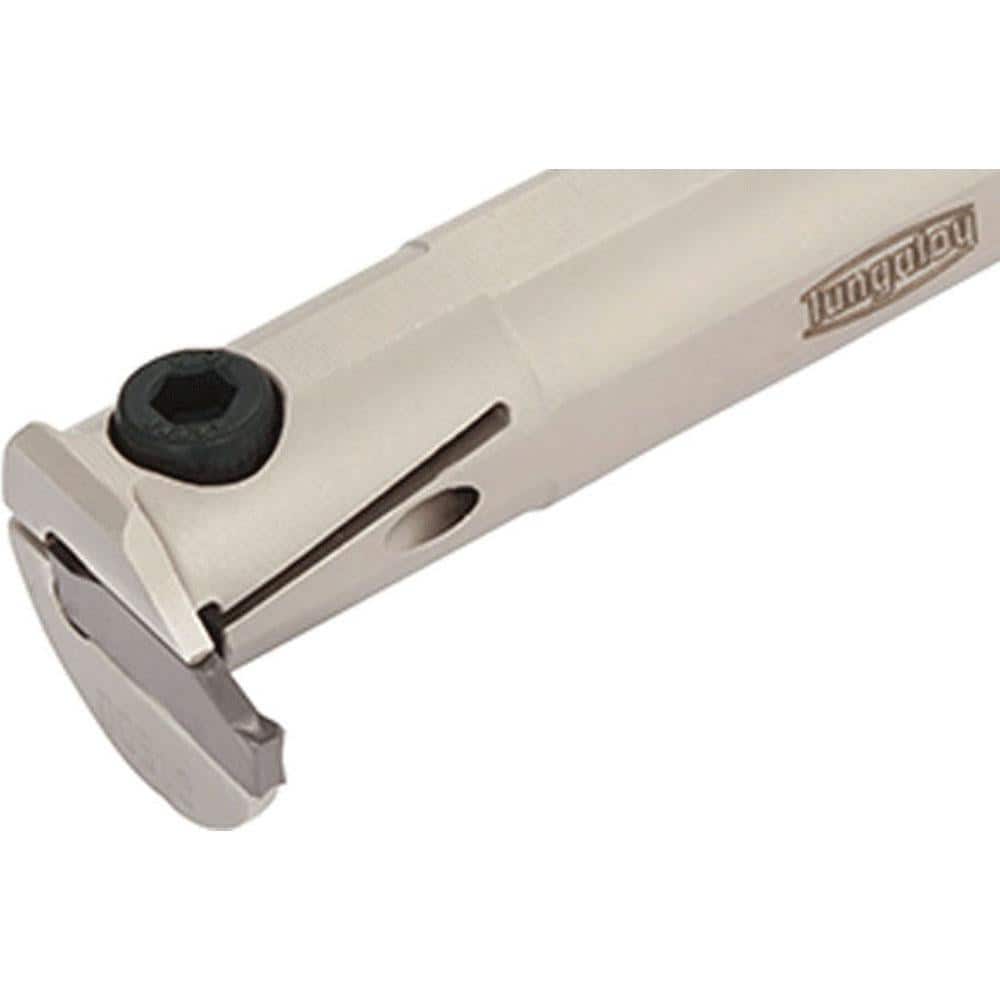

Indexable Grooving Toolholder: CTIR32-6T04-D310, Uses 6 Inserts, Through Coolant
Item #: 11025038
Brand: Tungaloy
Model #: 6860807
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 6 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 4.00 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | CTI |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 6 |
| Shank Height (mm) | 30.00 |
| Series | CTI |
| Overall Length (mm) | 250.00 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (mm) | 20.80 |
| Minimum Hole Diameter (mm) | 31.00 |
| Minimum Hole Diameter (Decimal Inch) | 31.0000 |
| Head Height (Decimal Inch) | 30.0000 |
| Head Height (mm) | 30.00 |
| Head Length (mm) | 60.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
