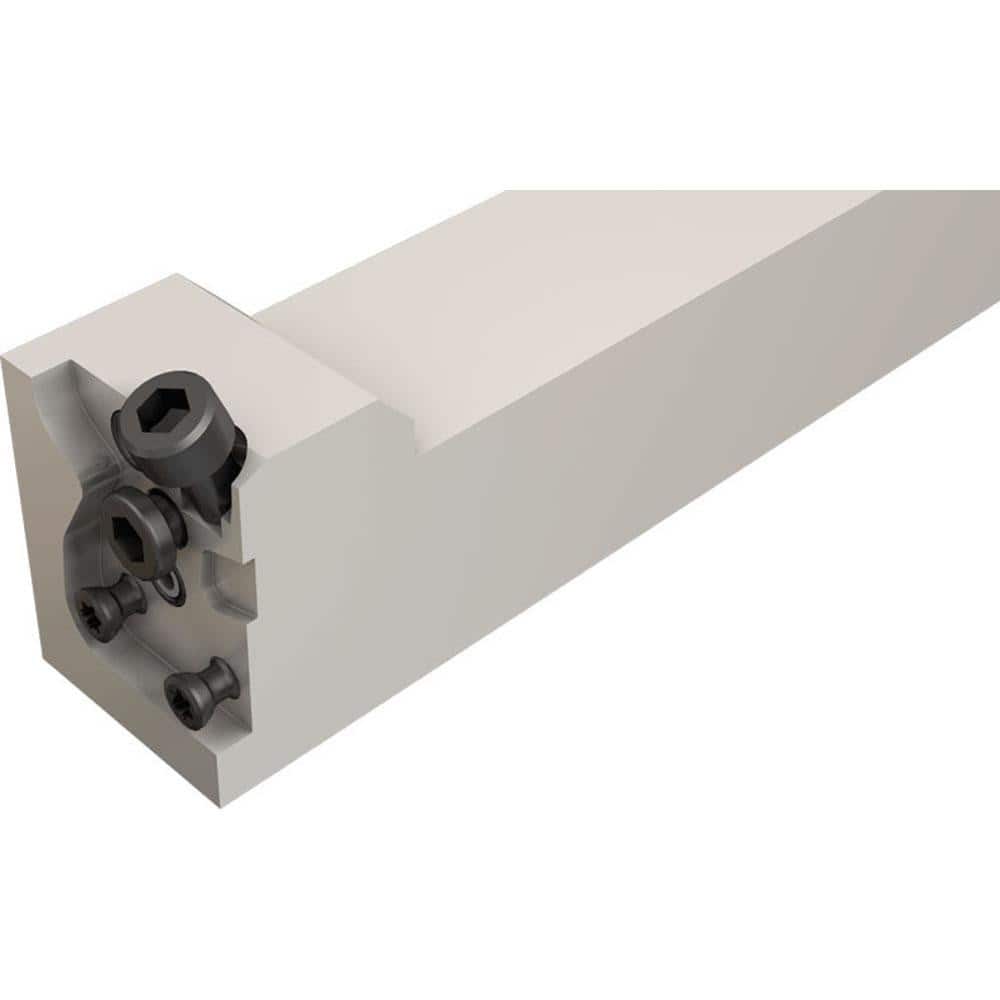

Indexable Grooving Toolholder: CHFVL16-CHP, Uses 2, 3, 4, 5, 6, 7, 8, 18 & 27 Inserts, 1.0000″ Shank Height, 1″ Shank Width, Through Coolant
Item #: 11024056
Brand: Tungaloy
Model #: 2801884
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 2.00 to 8.00 mm |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | CHFV |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 2; 3; 4; 5; 27; 6; 7; 18; 8 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | CHFV |
| Cutting Tool Application | Grooving; Recessing; Facing; Threading |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (Inch) | 1 |
| Head Length (Decimal Inch) | 1.1000 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
