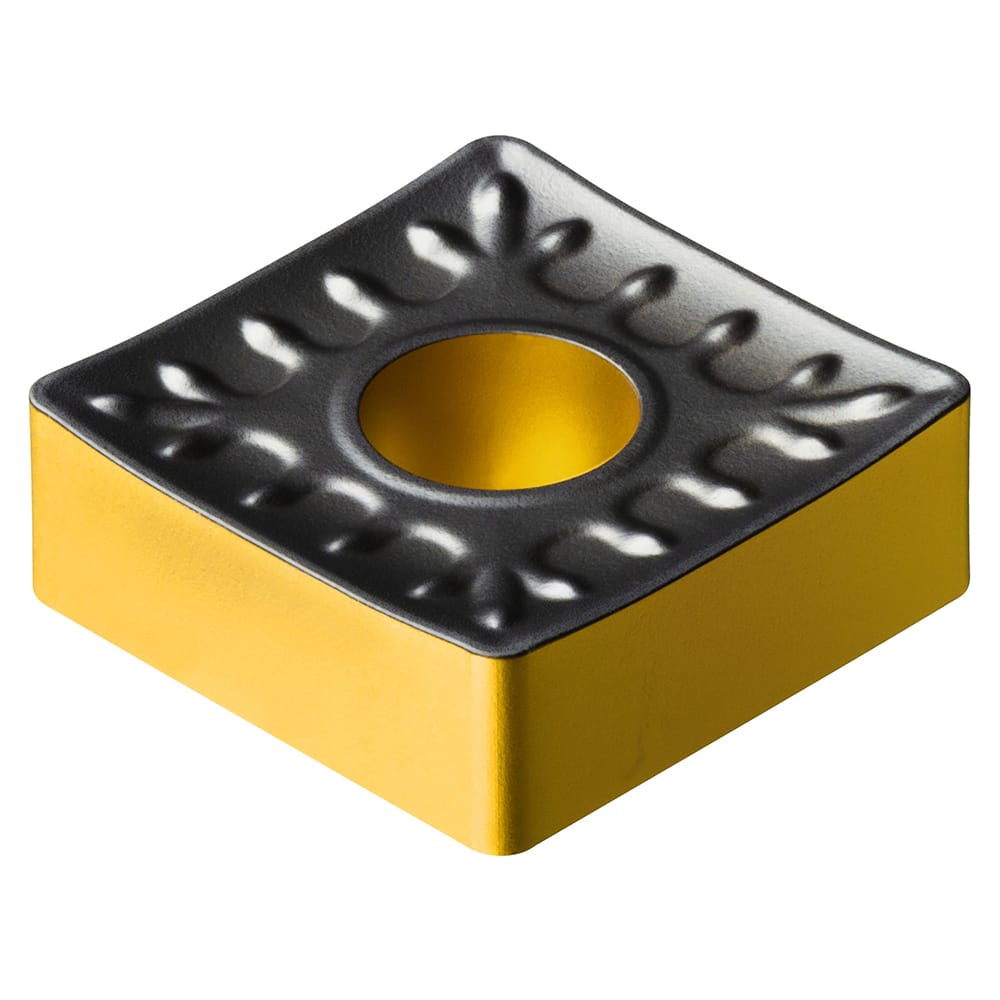

Turning Insert: SNMM 25 07 24-QR 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0938″ Corner Radius, N/A Square, Series SNMM-QR
Item #: 10799385
Brand: Sandvik Coromant
Model #: 7861255
Product Specifications
| Insert Style | SNMM |
| Insert Shape Code | S |
| Insert Size Code | 2507 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Series | SNMM-QR |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | SNMM 25 07 24-QR 4425 |
| Manufacturers Catalog Number | SNMM 25 07 24-QR 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | QR |
| Style | SNMM |
| Coating/Finish | TiCN; TiN; Al2O3 |
