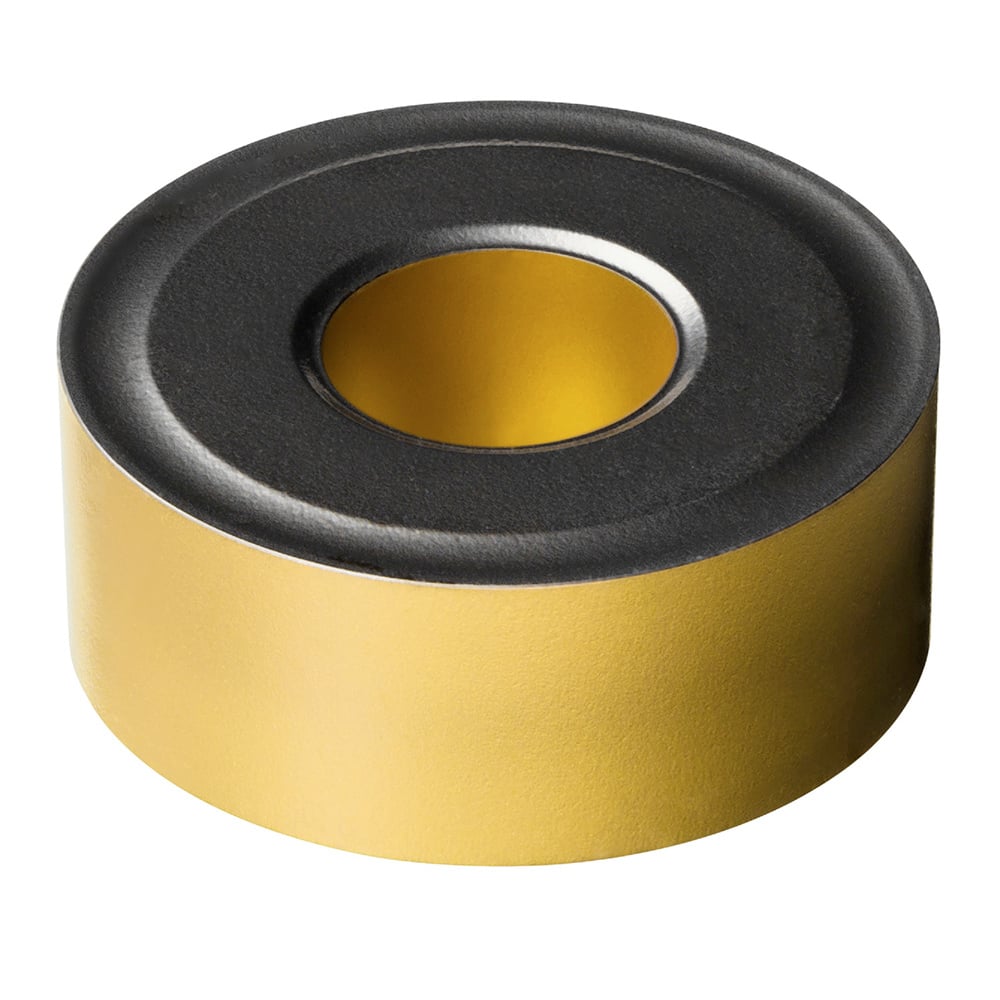

Turning Insert: RNMG 12 04 00 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.2500″ Corner Radius, N/A Series RNMG
Item #: 10798940
Brand: Sandvik Coromant
Model #: 8019570
Product Specifications
| Insert Style | RNMG |
| Insert Shape Code | R |
| Insert Size Code | 43 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Relief Angle | 0 |
| Series | RNMG |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | RNMG 12 04 00 4425 |
| Manufacturers Catalog Number | RNMG 12 04 00 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | 00 |
| Coating/Finish | TiCN; TiN; Al2O3 |
