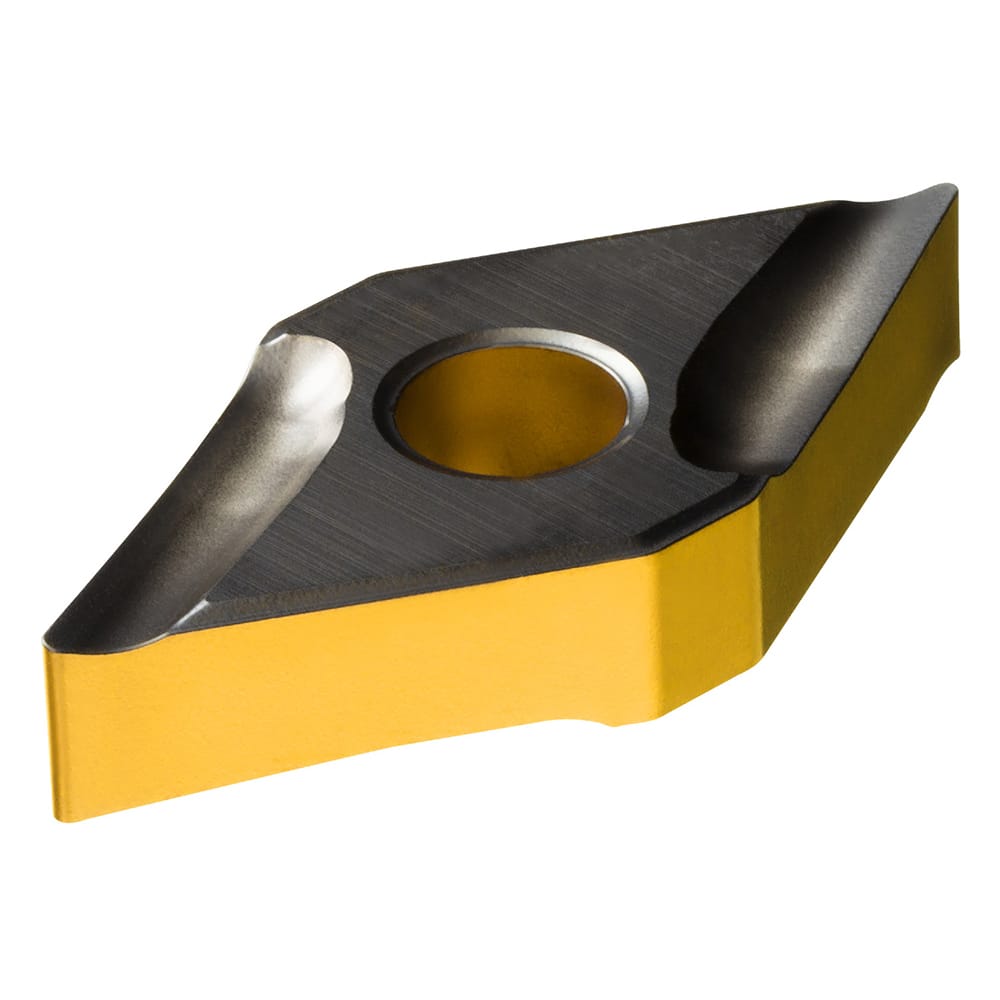

Turning Insert: DNMG 15 04 08R-K 4415, Solid Carbide TiCN, Al2O3 & TiN Finish, Right Hand, 0.0313″ Corner Radius, N/A Diamond 55 ™, Series DNMG..R & L-K
Item #: 10797827
Brand: Sandvik Coromant
Model #: 8021237
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 432 |
| Insert Shape | Diamond 55? |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0313 |
| Series | DNMG..R; L-K |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | DNMG 15 04 08R-K 4415 |
| Manufacturers Catalog Number | DNMG 15 04 08R-K 4415 |
| Cutting Direction | Right Hand |
| Chip Breaker | PR |
| Style | DNMG |
| Coating/Finish | TiCN; TiN; Al2O3 |
