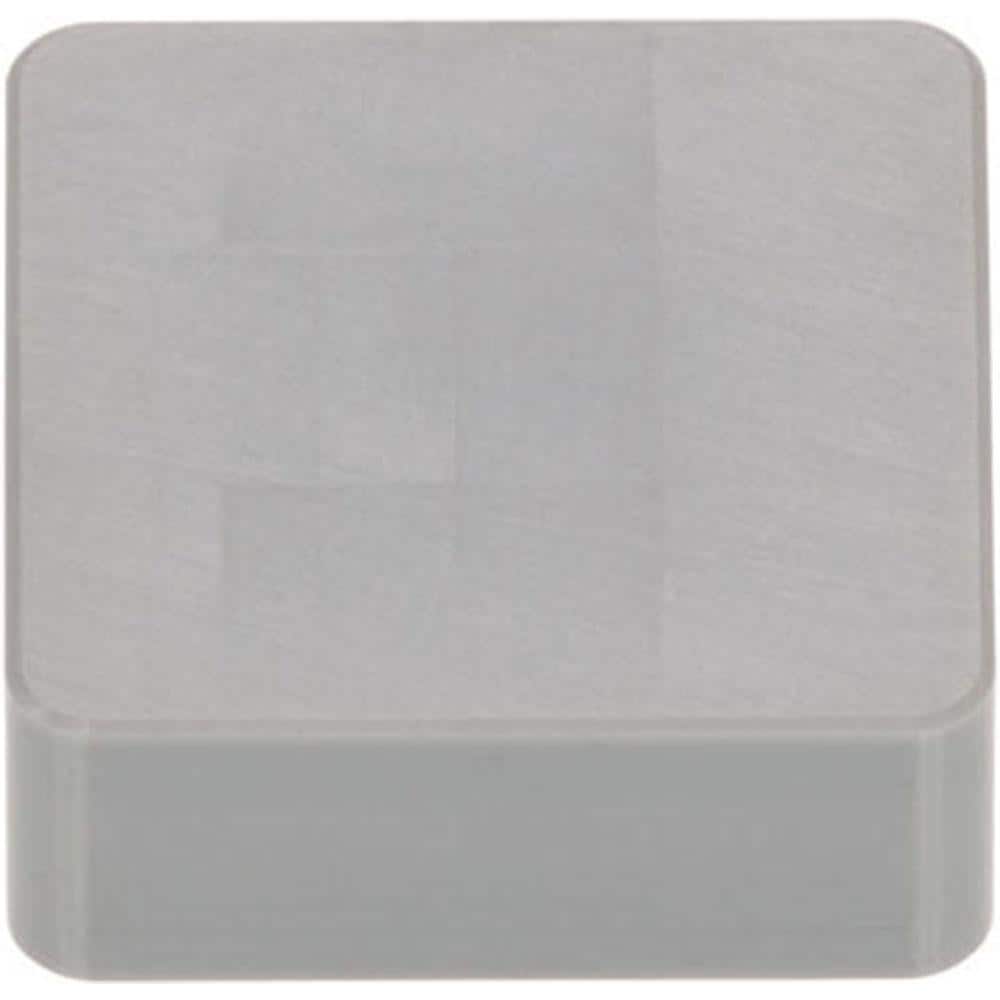

Turning Insert: SNGN453 FX105, Ceramic Uncoated Finish, Neutral, 0.5000″ Long, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, N/A Square, Series SNGN
Item #: 10690238
Brand: Tungaloy
Model #: 6806577
Product Specifications
| Insert Style | SNGN |
| Insert Shape Code | S |
| Insert Size Code | 453 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | FX105 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3130 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Relief Angle | 0 |
| Series | SNGN |
| Coating Process | Uncoated |
| Rake | Negative |
| Insert Length (Inch) | 1/2 |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Chip Breaker | N |
| Coating/Finish | Uncoated |
