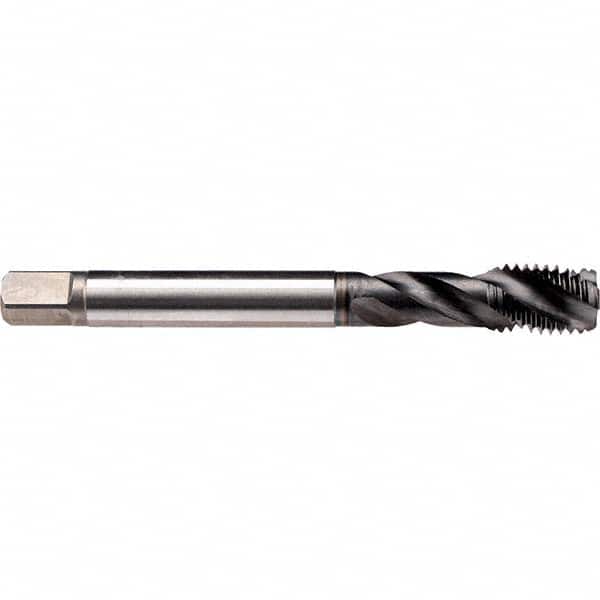

Spiral Flute Tap: 7/16-20, UNF, 2 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, GLT-8 Finish 0.866″ Thread Length, 3.937″ OAL, Right Hand Flute, Right Hand Thread, H3, Series CU50S810
Item #: 10657062
Brand: Emuge
Model #: CU50S810.5046
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-8 |
| Thread Size (Inch - 0 Decimals) | 7/16-20 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.8660 |
| Overall Length (Decimal Inch) | 3.9370 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Size (Decimal Inch) | 0.2420 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal |
| Series | CU50S810 |
| Coolant Through | No |
| Teeth per Inch | 20 |
| Number Of Flutes | 2 |
| Class Of Fit | 3B |
