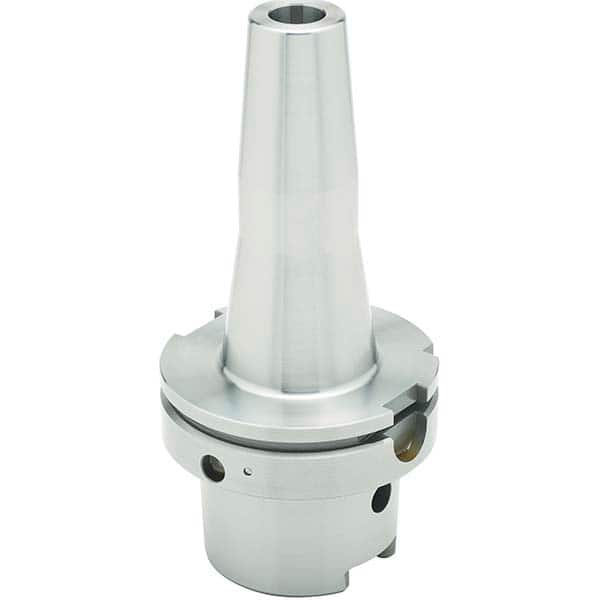

Shrink-Fit Tool Holder & Adapter: HSK100A Taper Shank 8.5″ Projection, 2.76″ Nose Dia, 2.5″ Clamp Depth, Through Coolant
Item #: 10340073
Brand: Parlec
Model #: H100-10SHD850-9
Product Specifications
| Shank Type | Taper |
| Taper Size | HSK100A |
| Overall Length (Decimal Inch) | 10.4685 |
| Hole Diameter (Inch) | 1-1/4 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.7600 |
| Projection (Decimal Inch - 4 Decimals) | 8.5000 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.5000 |
| TIR (mm) | 0.0030 |
| Additional Information | With Coolant Ports |
| Balanced To Rpm | 25000 |
