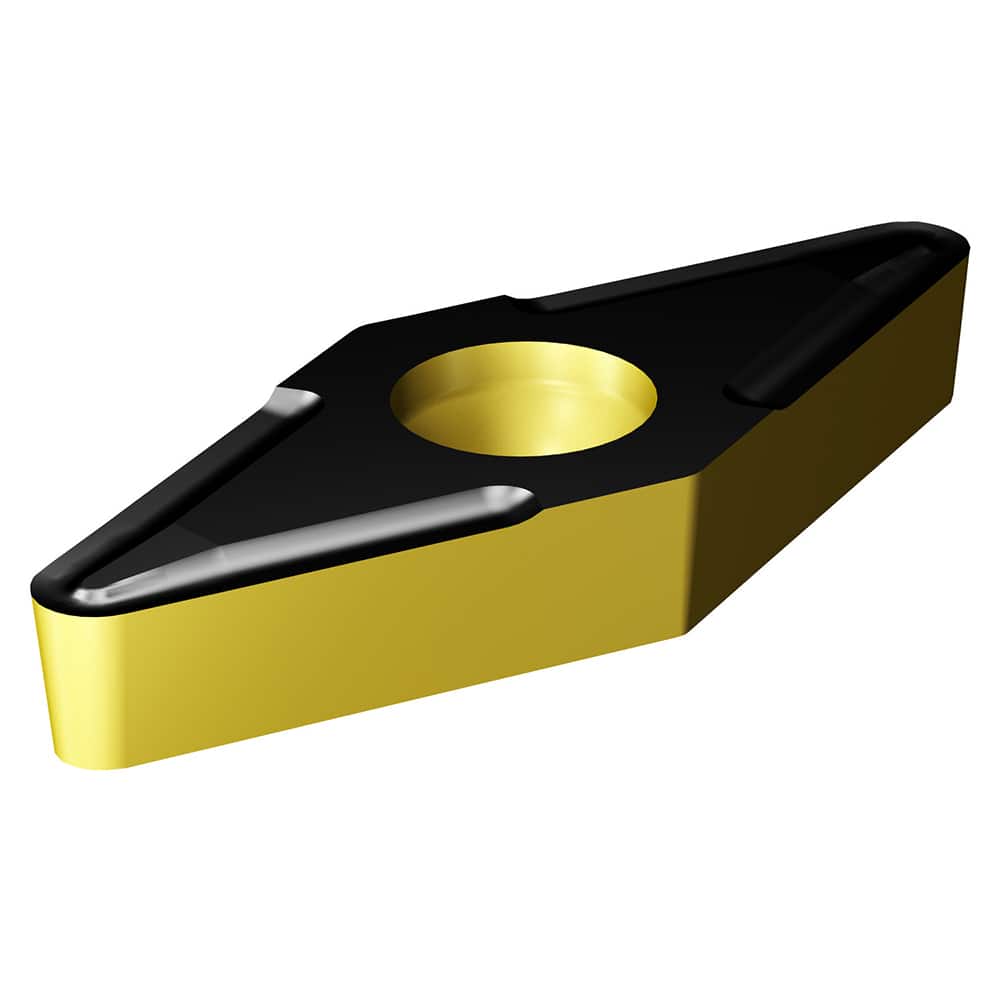

VBMT21.52-UF 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/4″ Inscribed Circle, 0.0313″ Corner Radius, 3/32″ Thick, 35° Triangle
Item #: 10208627
Brand: Sandvik Coromant
Model #: 7861117
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 1102 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | CoroTurn 107 |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | VBMT2152UF4425 |
| Iso Code | VBMT 11 02 08-UF 4425 |
| Manufacturers Catalog Number | VBMT 2(1.5)2-UF |
| Cutting Direction | Neutral |
| Chip Breaker | UF |
| Industry Standard Number | VBMT 11 02 08-UF 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10208627 |
| Mfr Part # | 7861117 |
| Country of OriginCountry of Origin is subject to change | Sweden |
