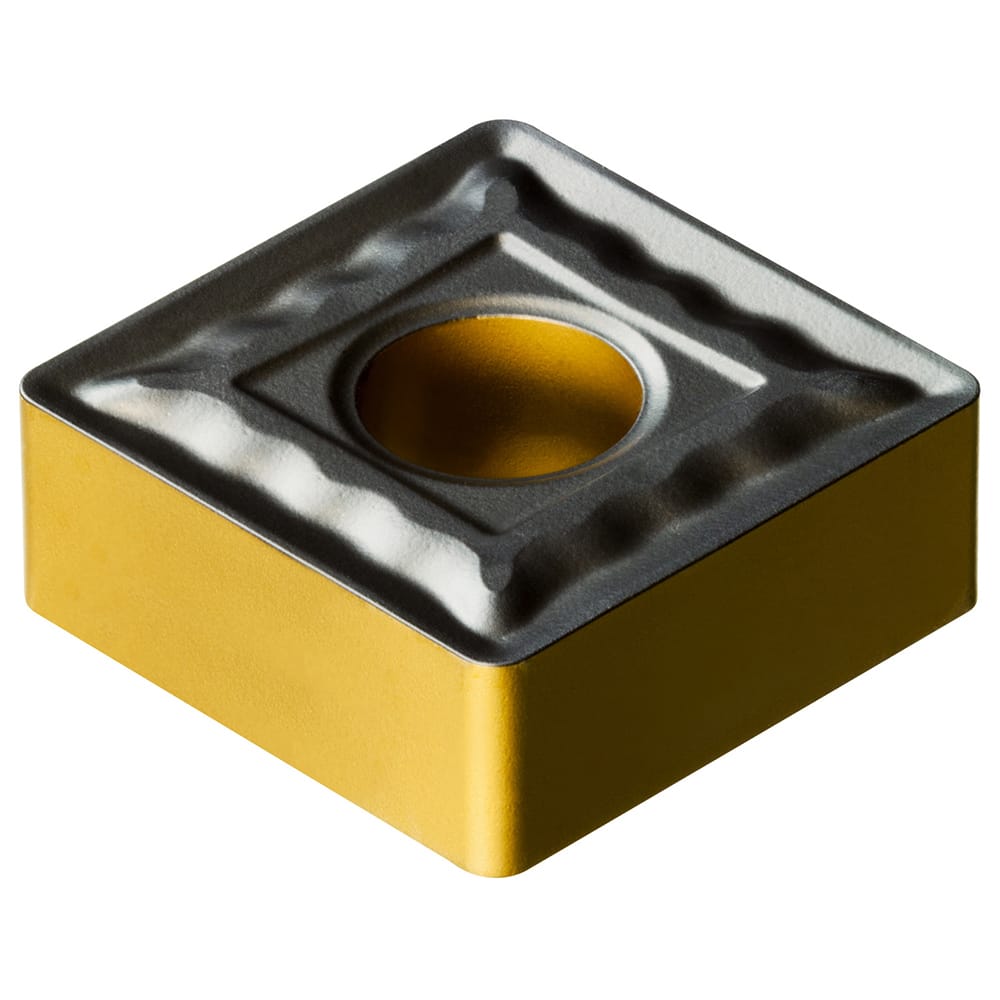

SNMG542-QM 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 5/8″ Inscribed Circle, 0.0313″ Corner Radius, 1/4″ Thick, Round
Item #: 10207975
Brand: Sandvik Coromant
Model #: 7861089
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 150608 |
| Insert Shape | Round |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | SNMG 15 06 08-QM 4425 |
| Manufacturers Catalog Number | SNMG 542-QM |
| Cutting Direction | Neutral |
| Chip Breaker | G |
| Industry Standard Number | SNMG 15 06 08-QM 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
