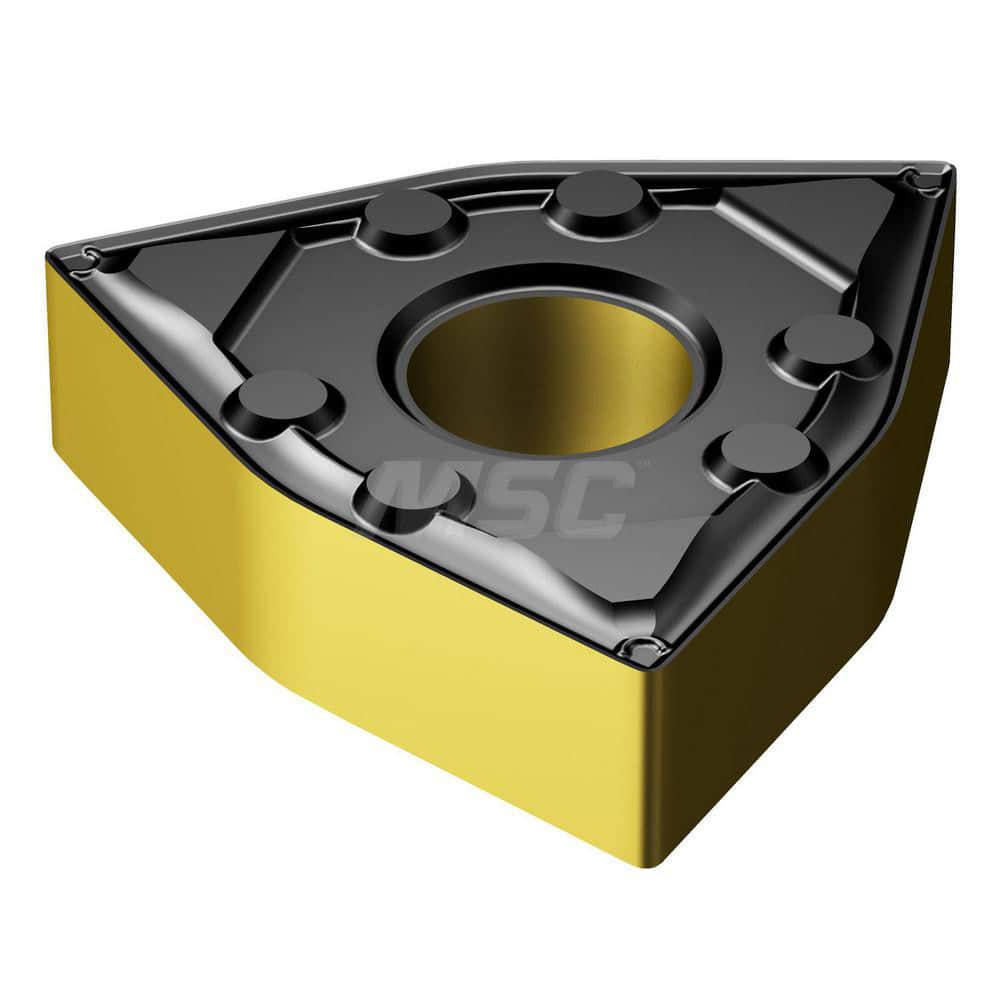

WNMG332-WF 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 3/8″ Inscribed Circle, 0.0313″ Corner Radius, 3/16″ Thick, 80° Triangle
Item #: 10207330
Brand: Sandvik Coromant
Model #: 7860586
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 0604 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.1500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Wiper Edge | Yes |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | WNMG332WF4415 |
| Iso Code | WNMG 06 04 08-WF 4415 |
| Manufacturers Catalog Number | WNMG 332-WF |
| Cutting Direction | Neutral |
| Chip Breaker | WF |
| Industry Standard Number | WNMG 06 04 08-WF 4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
