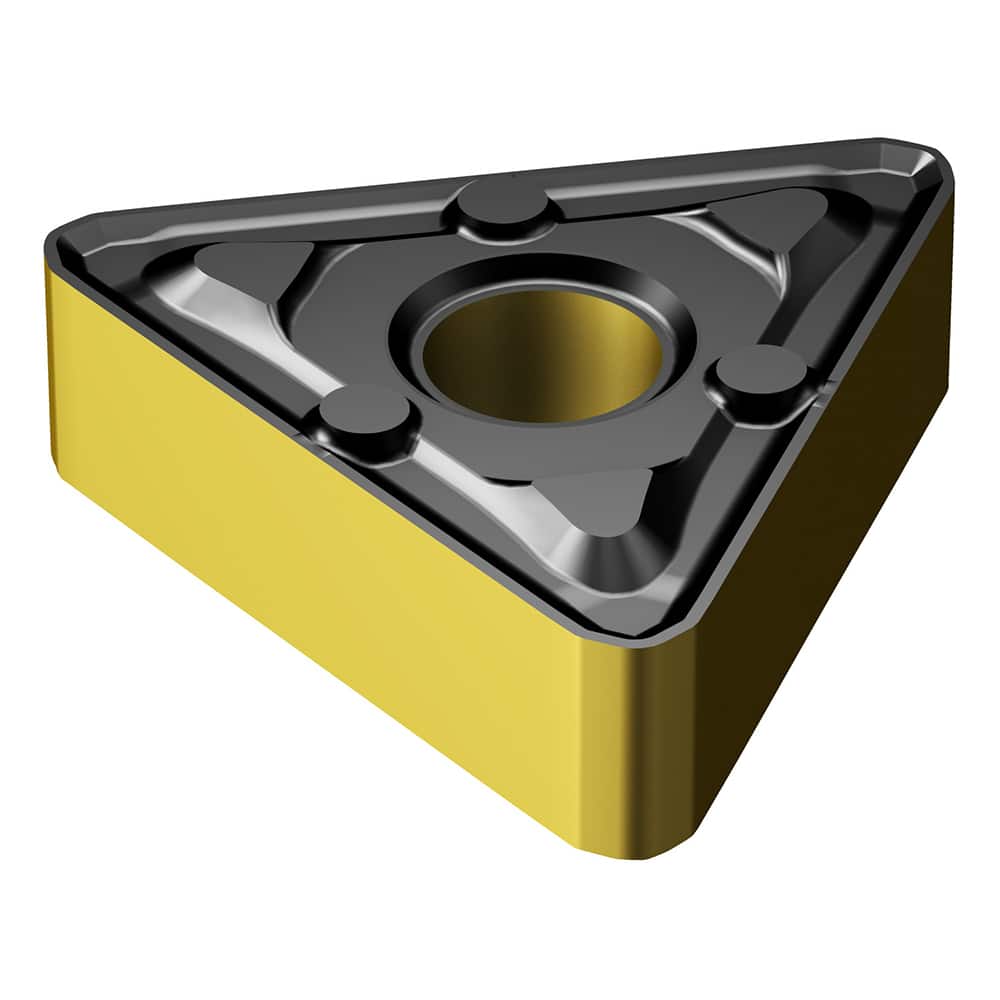

TNMX332-WM 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 3/8″ Inscribed Circle, 0.0313″ Corner Radius, 3/16″ Thick, 60° Triangle
Item #: 10206571
Brand: Sandvik Coromant
Model #: 7861267
Product Specifications
| Insert Style | TNMX |
| Insert Shape Code | T |
| Insert Size Code | 160408 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | TNMX 16 04 08-WM 4425 |
| Manufacturers Catalog Number | TNMX 332-WM |
| Cutting Direction | Neutral |
| Chip Breaker | X |
| Industry Standard Number | TNMX 16 04 08-WM 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
