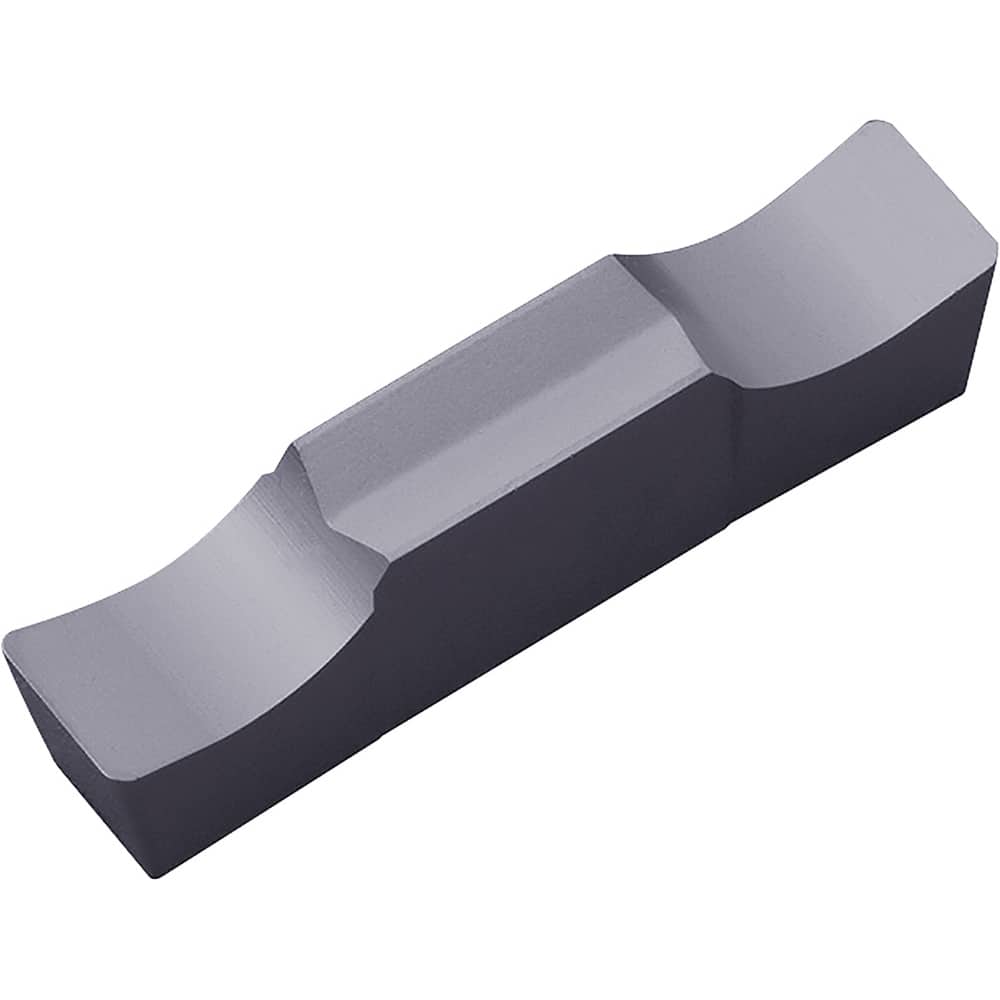

Grooving Insert: GMG8030050MG PR905, Solid Carbide TiAlN Finish, Neutral, 8 mm Cutting Width, 25 mm Max Depth, Series KGM
Item #: 10162014
Brand: Kyocera
Model #: TJF12433
Product Specifications
| Insert Style | GMG |
| Insert Size | 8030050 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR905 |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 5.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.50 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Rake | Positive |
| Multi-use Tool | No |
| Series | KGM |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1811 |
| Manufacturers Catalog Number | GMG8030050MGPR905 |
| Chip Breaker | MG |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 2 |
| For Use With | KIGMR...8; KIGML...8; KGML...8; KGMR...8; KIGMUR...8 |
| Insert Thickness | 5.50 |
