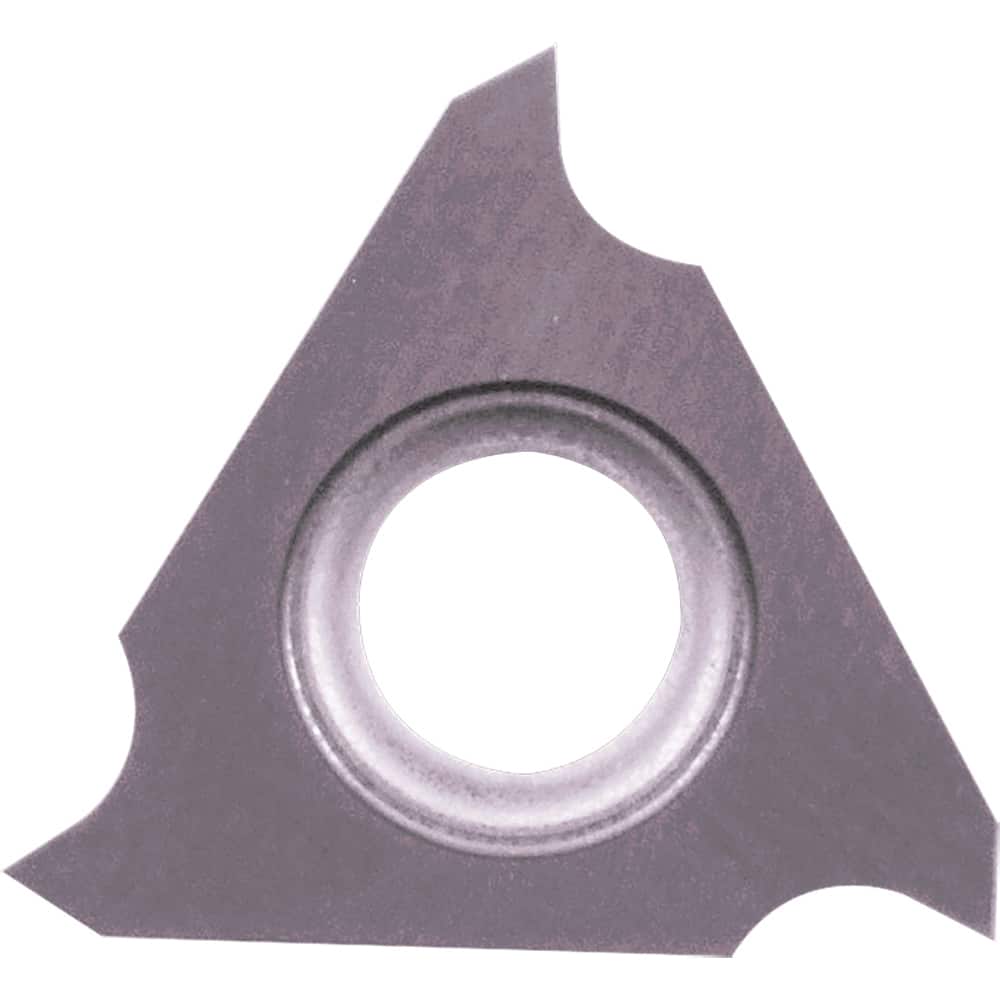

Grooving Insert: GBF32 PR1535, Solid Carbide Megacoat Nano Finish, Right Hand, 0.5 mm Cutting Width, 1.2 mm Max Depth, Series KGB
Item #: 10160158
Brand: Kyocera
Model #: TLC18725
Product Specifications
| Insert Style | GBF |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Cutting Width (mm) | 0.50 |
| Maximum Depth of Cut (Inch) | 3/64 |
| Maximum Depth of Cut (mm) | 1.20 |
| Insert Holding Method | Screw |
| Cutting Height (mm) | 3.18 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.05 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Rake | Positive |
| Multi-use Tool | No |
| Series | KGB |
| Coating Process | PVD |
| Manufacturers Catalog Number | GBF32R050005PR1535 |
| Inscribed Circle (Inch) | 3/8 |
| Hole Diameter (Decimal Inch) | 0.1252 |
| Coating/Finish | Megacoat Nano |
| Number Of Cutting Edges | 3 |
| For Use With | KGBFR?-16F |
| Insert Thickness | 3.18 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.18 |
