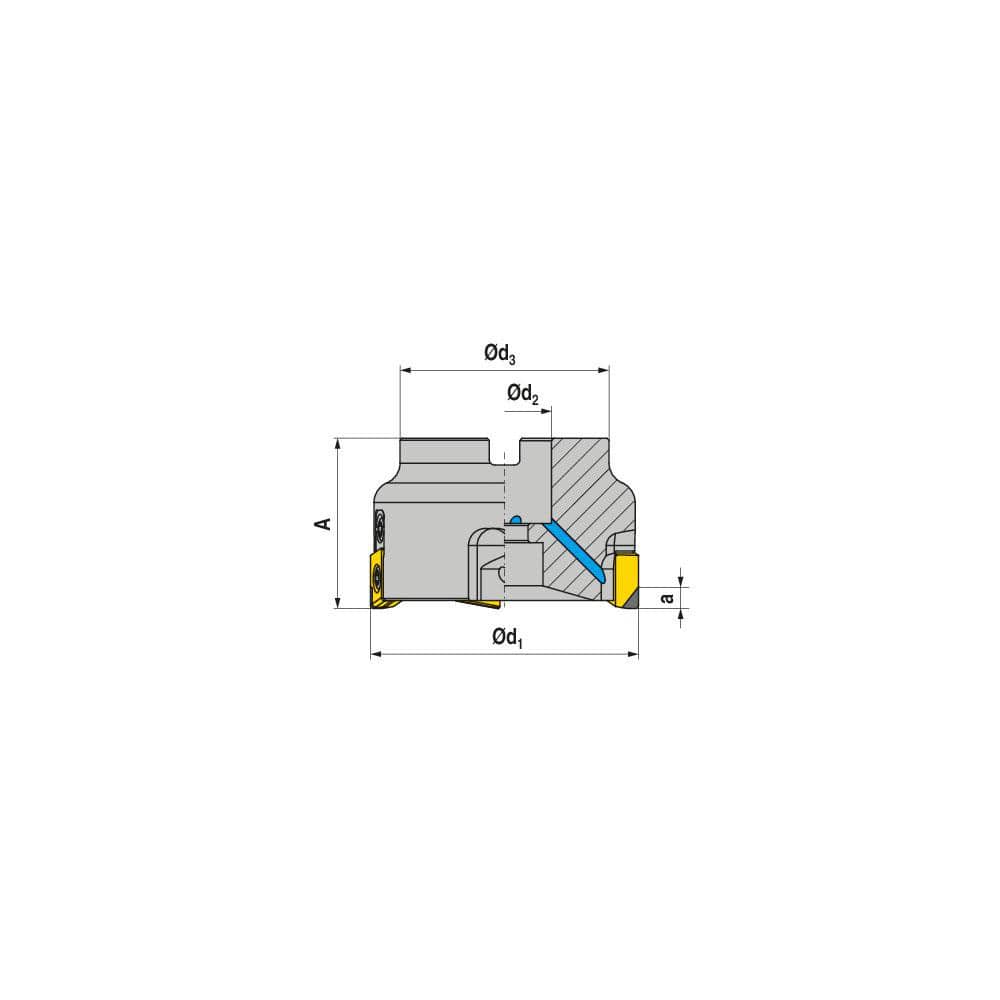

Indexable Square-Shoulder Face Mill: AHPC.100.R.12-12, 32.0000″ Arbor Hole Dia, Uses 12, ZNHW 1205.. Inserts, Through Coolant, Series AHPC-12
Item #: 10030344
Brand: Ceratizit
Model #: 50724100
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 11.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Inch) | 32 |
| Arbor Hole Diameter (Decimal Inch) | 32.0000 |
| Compatible Insert Size Code | ZNHW 1205.. |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | AHPC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | AHPC-12 |
| Overall Height (Mm - 5 Decimals) | 32.00 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 70.0000 |
| Hub Diameter (Inch) | 70 |
| Maximum RPM | 24000 |
| Tool Application | Facing; Shouldering |
| Primary Workpiece Material | Non-Ferrous Metal |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
