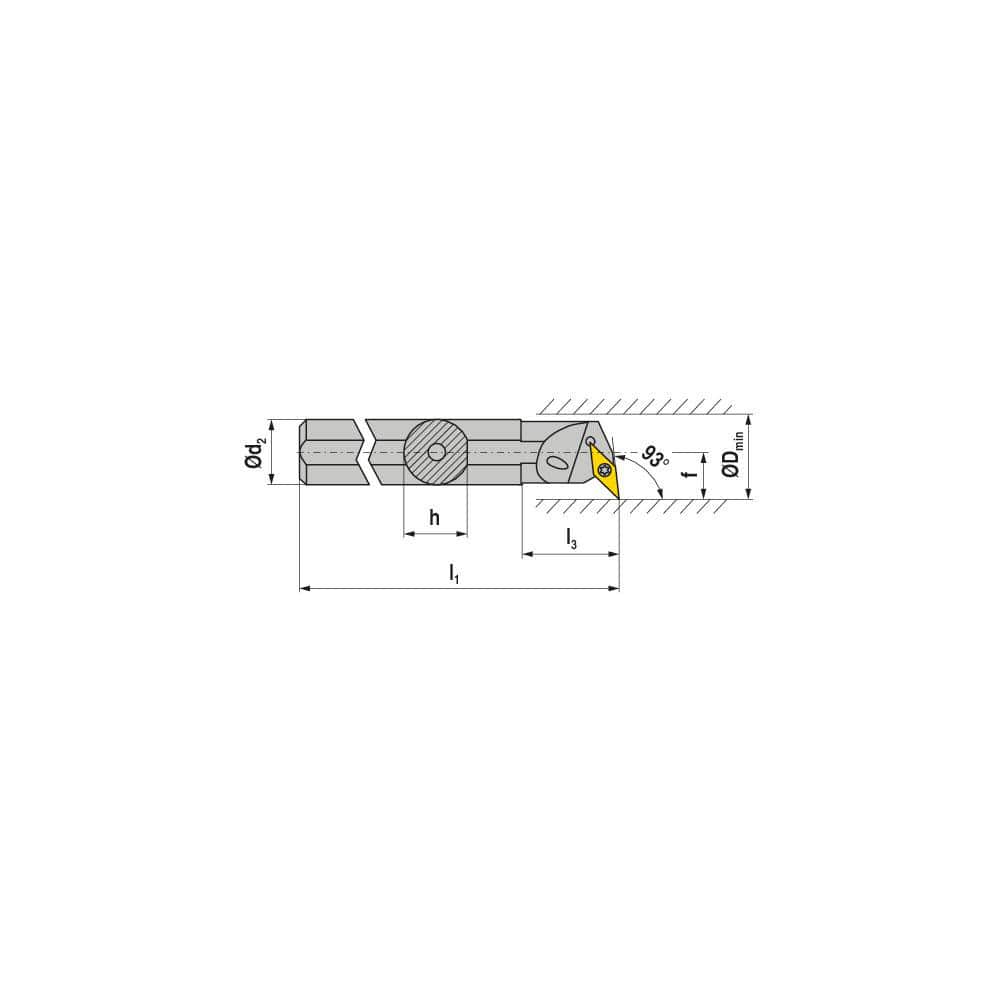

Indexable Boring Bar: S32W SVUCL 3, 2.00 mm Shank Dia, 93.00° N/A Steel 18.0000″ OAL, Screw Clamping,
Item #: 10029411
Brand: Ceratizit
Model #: 7872933243
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 2.7500 |
| Minimum Bore Diameter (Inch) | 2-3/4 |
| Maximum Bore Depth (Decimal Inch) | 4.0000 |
| Maximum Bore Depth (Inch) | 4 |
| Toolholder Style | SVUCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (mm) | 2.00 |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 18.0000 |
| Overall Length (mm) | 18.00 |
| Overall Length (Inch) | 18 |
| Compatible Insert Size Code | VC..33. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 7.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 1.3752 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
