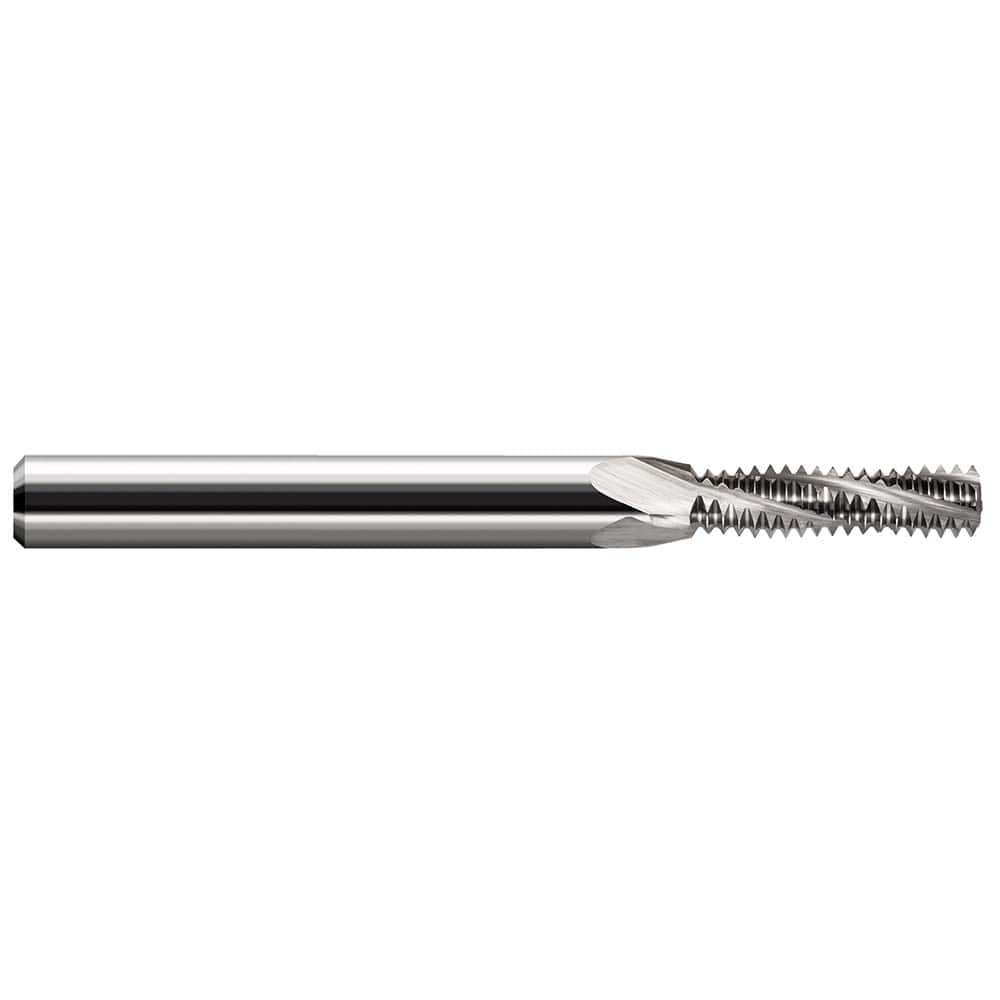

Harvey Tool - M4 X 0.70 Internal/External 0.7mm Pitch 3/16" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 10006658
Brand: Harvey Tool
Model #: 842907
Product Specifications
| Pitch (mm) | 0.70 |
| Material | Solid Carbide |
| Thread Size (mm) | M4 X 0.70 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 3/16 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1240 |
| Length of Cut (Decimal Inch) | 0.4410 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter (mm) | 4 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
