Kennametal - 21505DPGT LF Grade KCS10B Carbide Turning Insert - Americas Industrial Supply

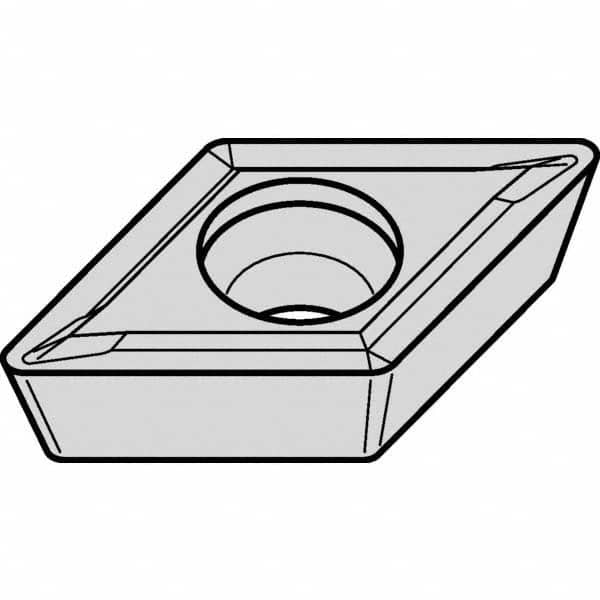

Kennametal - 21505DPGT LF Grade KCS10B Carbide Turning Insert


Item #: 12255410
Brand: Kennametal
Model #: 6686941

Features and Benefits

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Insert Style DPGT
Insert Size 21505
Material Carbide
Length (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.1102
Thickness (Inch) 3/32
Corner Radius (Decimal Inch) 0.0080
Manufacturer's Grade KCS10B
Coating AlTiN
Chip Breaker LF
Insert Length (Decimal Inch) 0.3052
Hole Diameter (Decimal Inch) 0.1102
ISO Number DPGT070202LF
Relief Angle 11
Manufacturers Catalog Number DPGT21505LF
Material Carbide
Coating AlTiN
Inscribed Circle (Decimal Inch) 0.1102
Material Carbide
Manufacturer's Grade KCS10B
Insert Style DPGT
Insert Size 21505
Shape Diamond/Rhombic
Corner Radius (Decimal Inch) 0.0080
Coating AlTiN
Material Carbide
Manufacturer's Grade KCS10B
Insert Style DPGT
Length (Decimal Inch) 0.3052
Insert Size 21505
Series DPGT
Series DPGT
Series DPGT
Shape Diamond/Rhombic
$24.16
