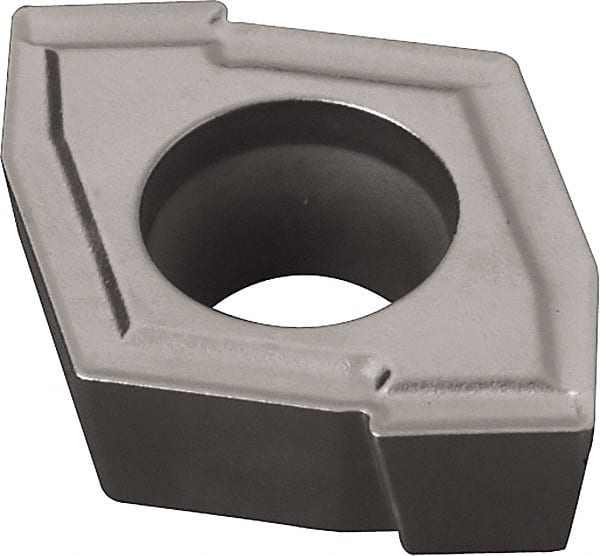

Kyocera - ZCMT150408 Grade PR1210 Carbide Indexable Drill Insert
Item #: 50467372
Brand: Kyocera
Model #: 8833089
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
| Product Specifications | |
|---|---|
| Insert Style | ZCMT |
| Insert Size | 150408 |
| Material | Carbide |
| Manufacturer's Grade | PR1210 |
| Length (mm) | 17.80 |
| Length (Decimal Inch) | 0.7008 |
| Width (Decimal Inch) | 0.6220 |
| Width (mm) | 15.80 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.031496 |
| Shape | Diamond |
| Hole Diameter (mm) | 5.60 |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Relief Angle | 7 |
| Coating | Megacoat |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
