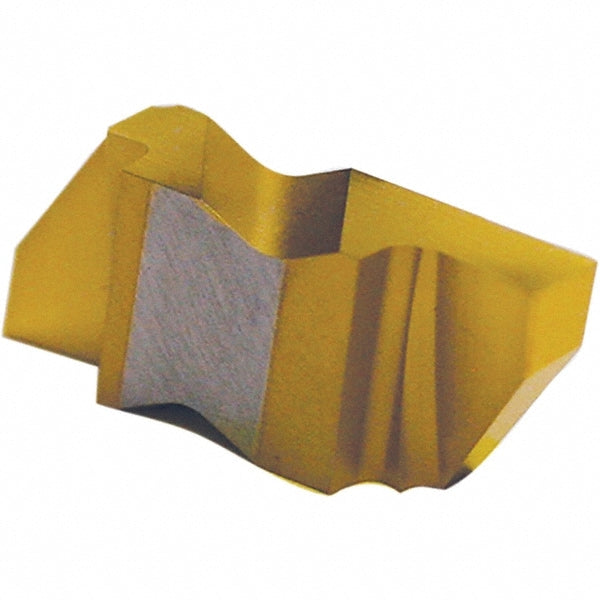

Grooving Insert: FLG2031 AC3, Solid Carbide
Item #: 30073977
Brand: Tool-Flo
Model #: 562631LAC3R
Product Specifications
| Insert Style | FLG |
| Insert Size Code | 2031 |
| Cutting Width (Decimal Inch) | 0.031 |
| Cutting Width (mm) | 0.79 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Maximum Depth of Cut (mm) | 1.27 |
| Insert Material | Carbide |
| Manufacturer Grade | AC3 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0020 - 0.0050 |
| Insert Holding Method | Clamp |
| Insert Size | 2031 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Flo-Lock |
| Coating Process | PVD |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron |
| Iso Code | FLG-2031L |
| Manufacturers Catalog Number | FLG-2031L |
| Insert Thickness (Decimal Inch) | 0.1500 |
| UNSPSC Code | 23242105 |
| Gage Diameter (Decimal Inch) | 0.1875 |
| Coating/Finish | AlTiN |
