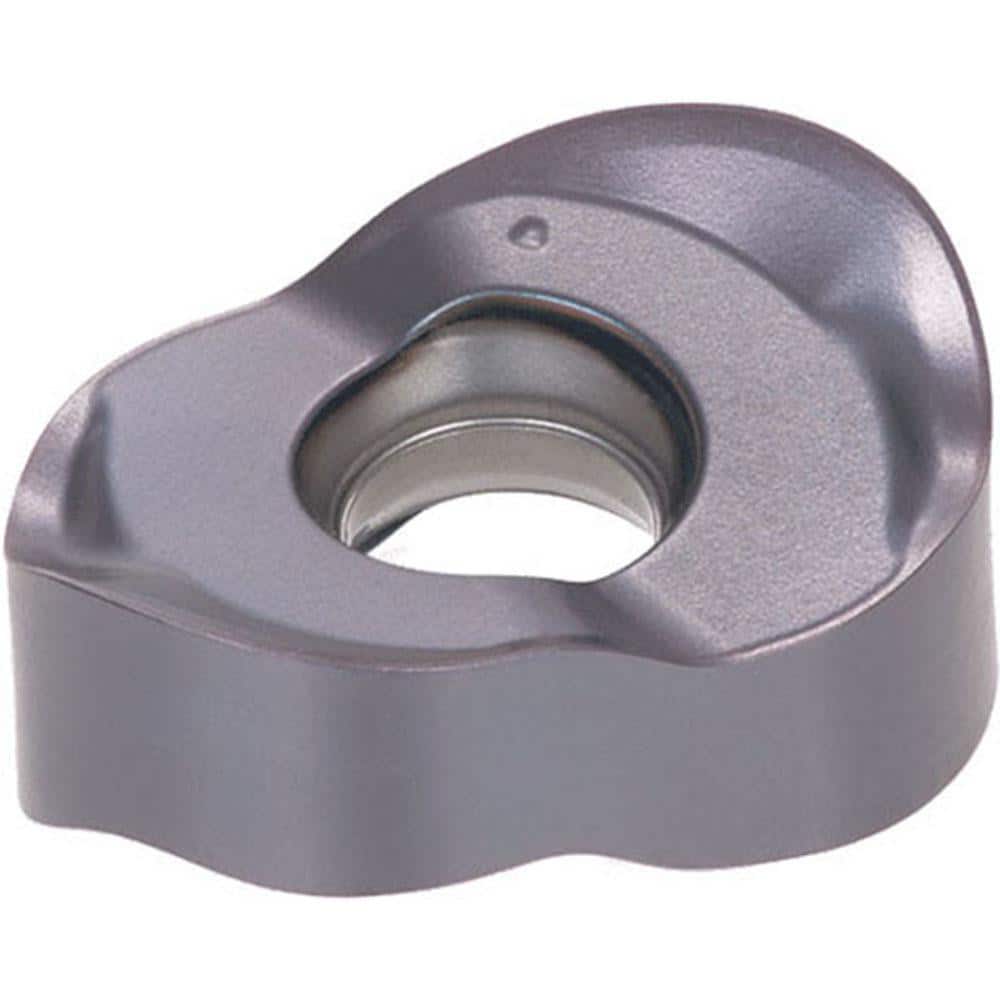

Milling Insert: AH3225, Solid Carbide N/A Finish,
Item #: 09998683
Brand: Tungaloy
Model #: 6823930
Product Specifications
| Insert Style | LNMX |
| Insert Size Code | 04 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH3225 |
| Inscribed Circle (Decimal Inch) | 0.3228 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Series | LNMX |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Chip Breaker | MJ |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2200 |
