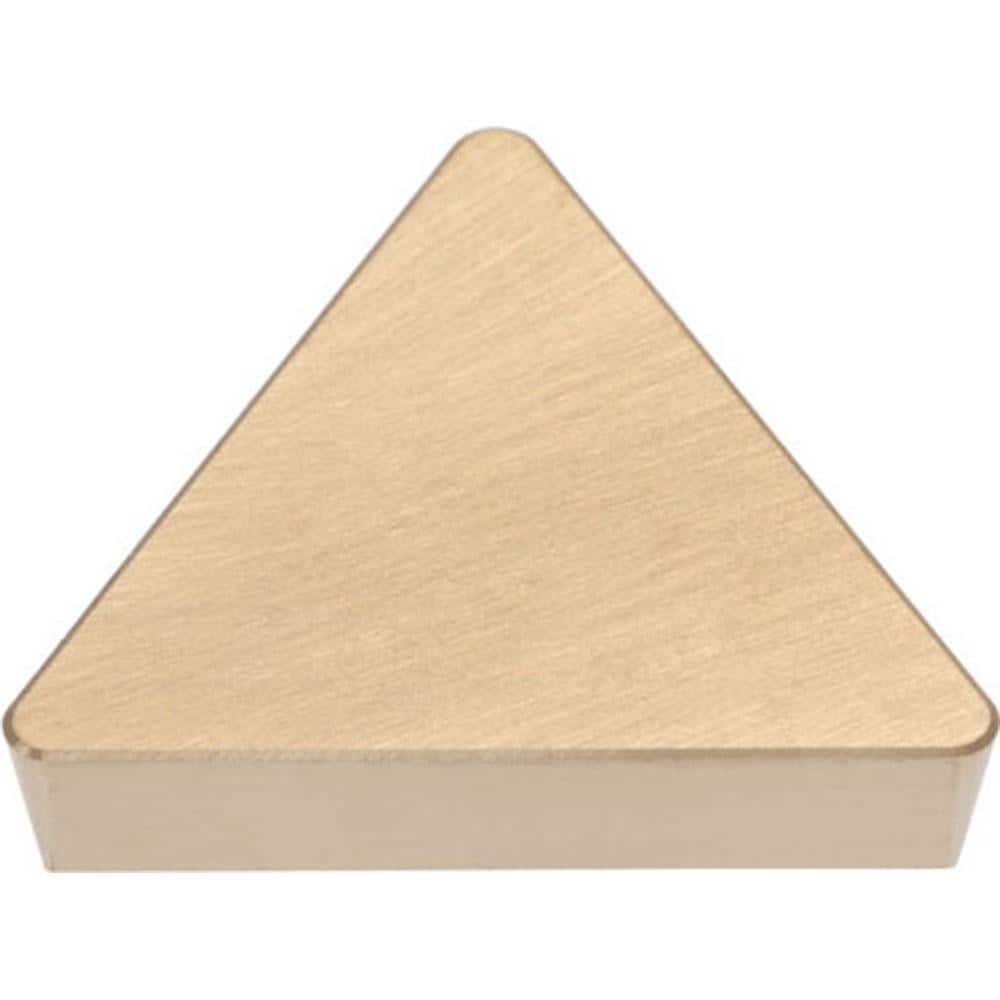

Turning Insert: TPGN322 NS9530, Cermet Uncoated Finish, Neutral, 0.6500″ Long, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, N/A Triangle, Series TPGN
Item #: 09995473
Brand: Tungaloy
Model #: 6998031
Product Specifications
| Insert Style | TPGN |
| Insert Shape Code | T |
| Insert Size Code | 322 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Cermet |
| Manufacturer Grade | NS9530 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 11 |
| Series | TPGN |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6500 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | N |
| Coating/Finish | Uncoated |
