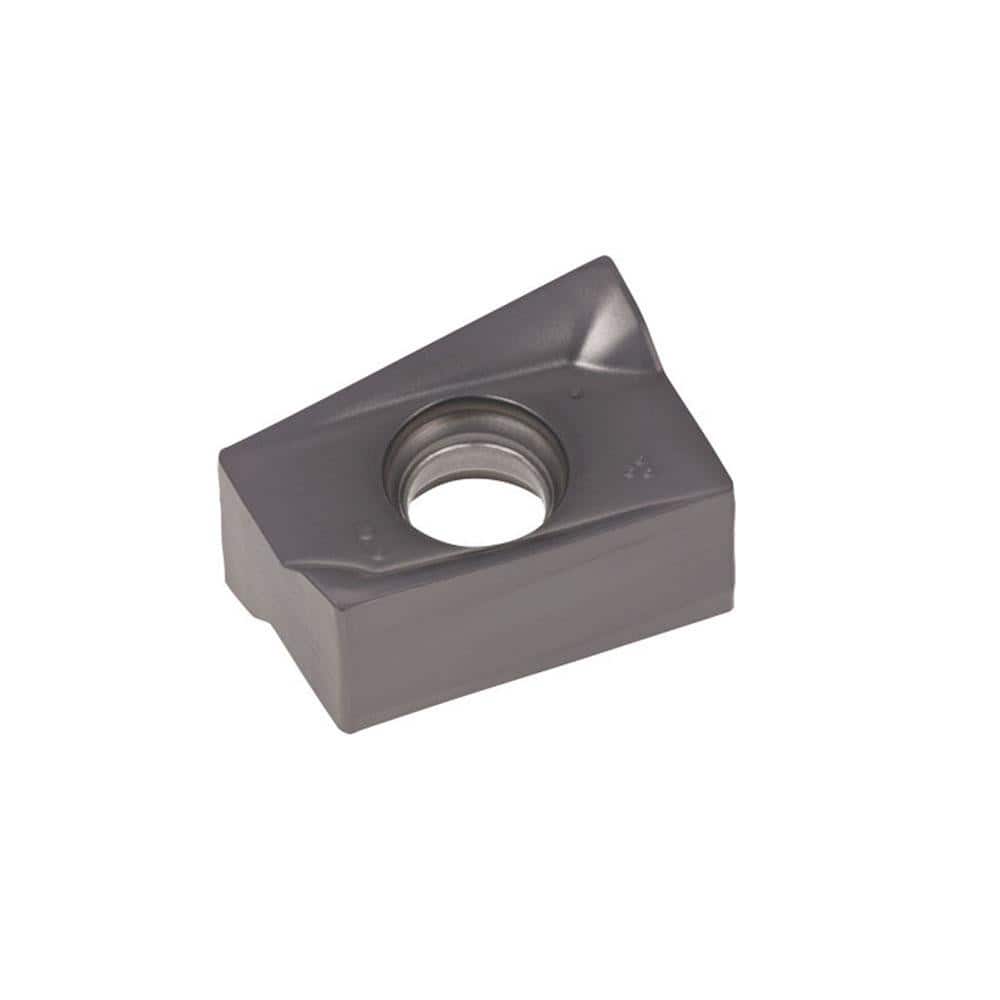

Milling Insert: AH120, Solid Carbide N/A Finish,
Item #: 09993981
Brand: Tungaloy
Model #: 6990560
Product Specifications
| Insert Style | LQMU |
| Insert Size Code | 11 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH120 |
| Inscribed Circle (Decimal Inch) | 0.3540 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Insert Hand | Right Hand |
| Series | LQMU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4330 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Chip Breaker | MJ |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.3270 |
