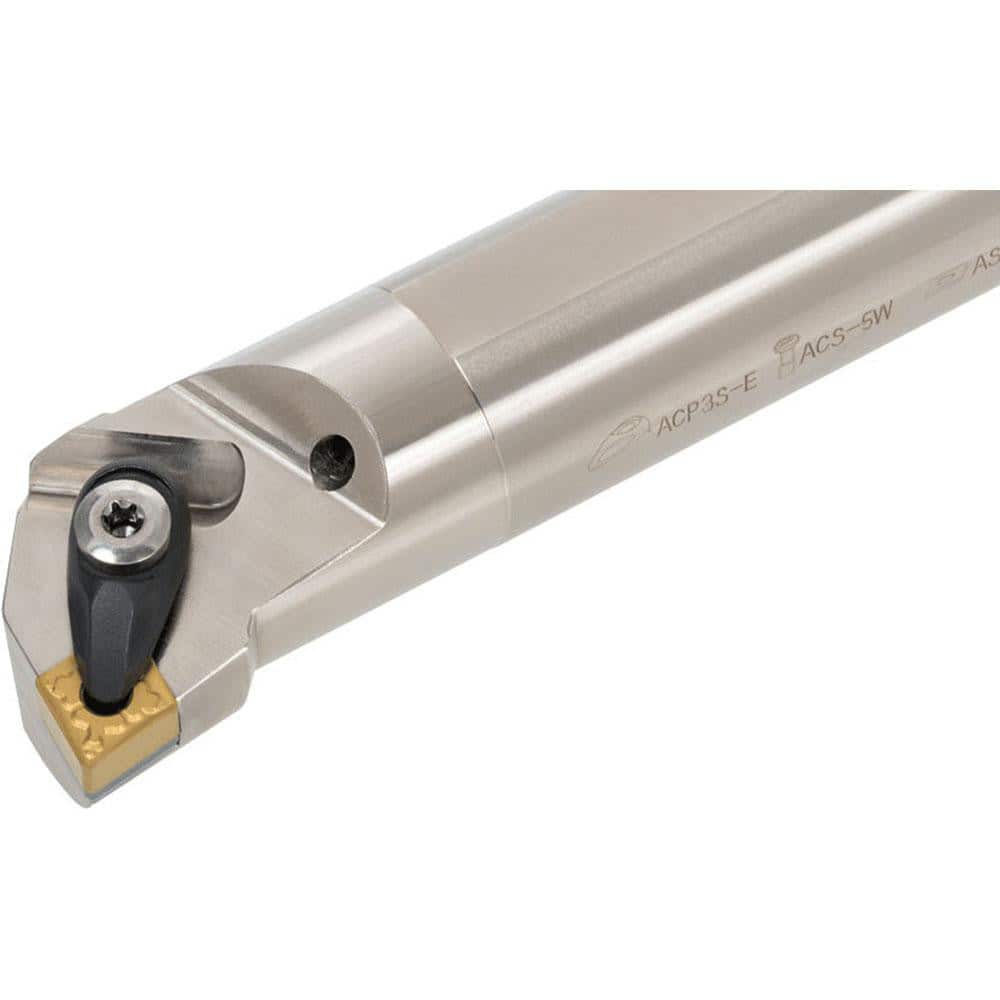

Indexable Boring Bar: A20-ACLNL33-D25, 95.00° N/A Steel 14.0000″ OAL, Clamp,
Item #: 09985581
Brand: Tungaloy
Model #: 6733336
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.5600 |
| Maximum Bore Depth (Decimal Inch) | 5.0000 |
| Maximum Bore Depth (Inch) | 5 |
| Toolholder Style | ACLN |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | 33 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Rake Angle | -10.00 |
| Lead Angle | 95.00 |
| Series | ACLN |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8590 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
