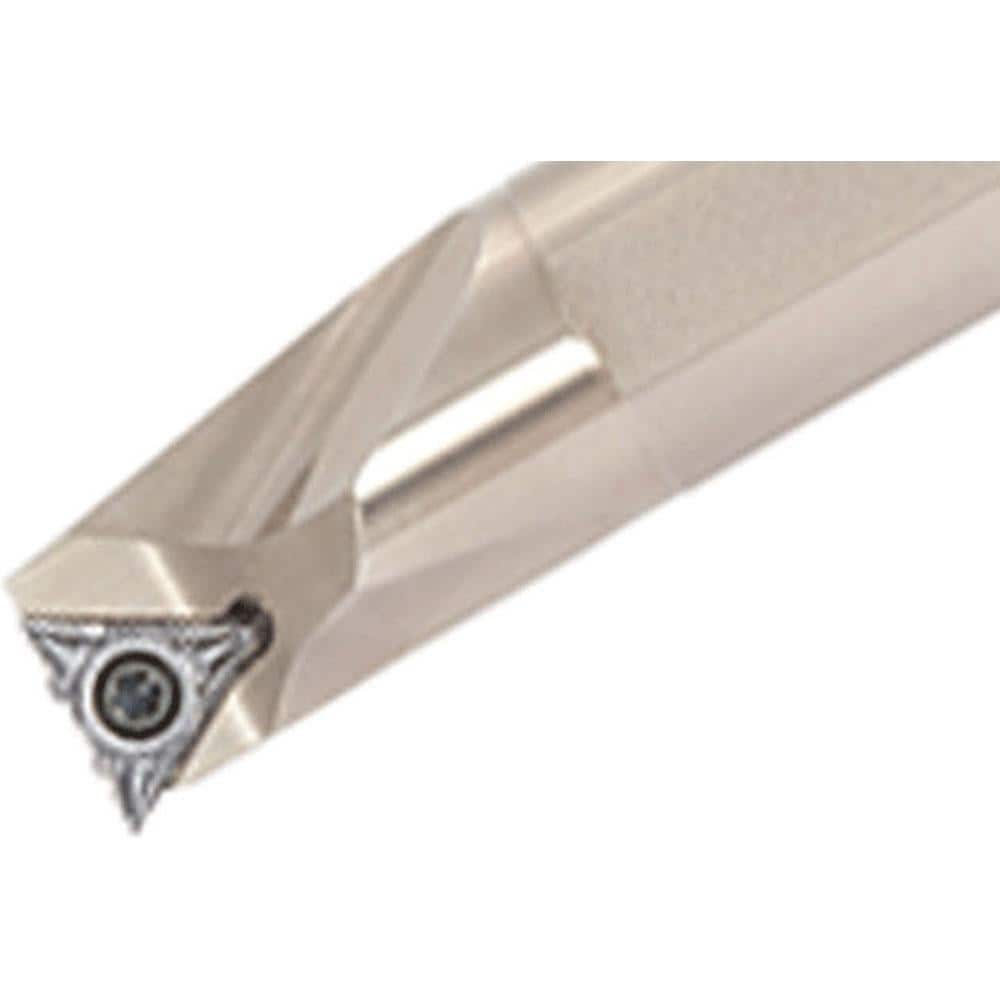

Indexable Boring Bar: A20R-STFPR13-D220, 22.00 mm Min Bore, 20.00 mm Shank Dia, 91.00° N/A Steel 200.0000″ OAL, Screw,
Item #: 09984014
Brand: Tungaloy
Model #: 6853705
Product Specifications
| Minimum Bore Diameter (mm) | 22.00 |
| Maximum Bore Depth (mm) | 80.00 |
| Toolholder Style | STFP |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Inch) | 20 |
| Overall Length (Decimal Inch) | 200.0000 |
| Overall Length (mm) | 200.00 |
| Overall Length (Inch) | 200 |
| Compatible Insert Size Code | 2.52 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -2.00 |
| Lead Angle | 91.00 |
| Series | STFP |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3130 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 11.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
