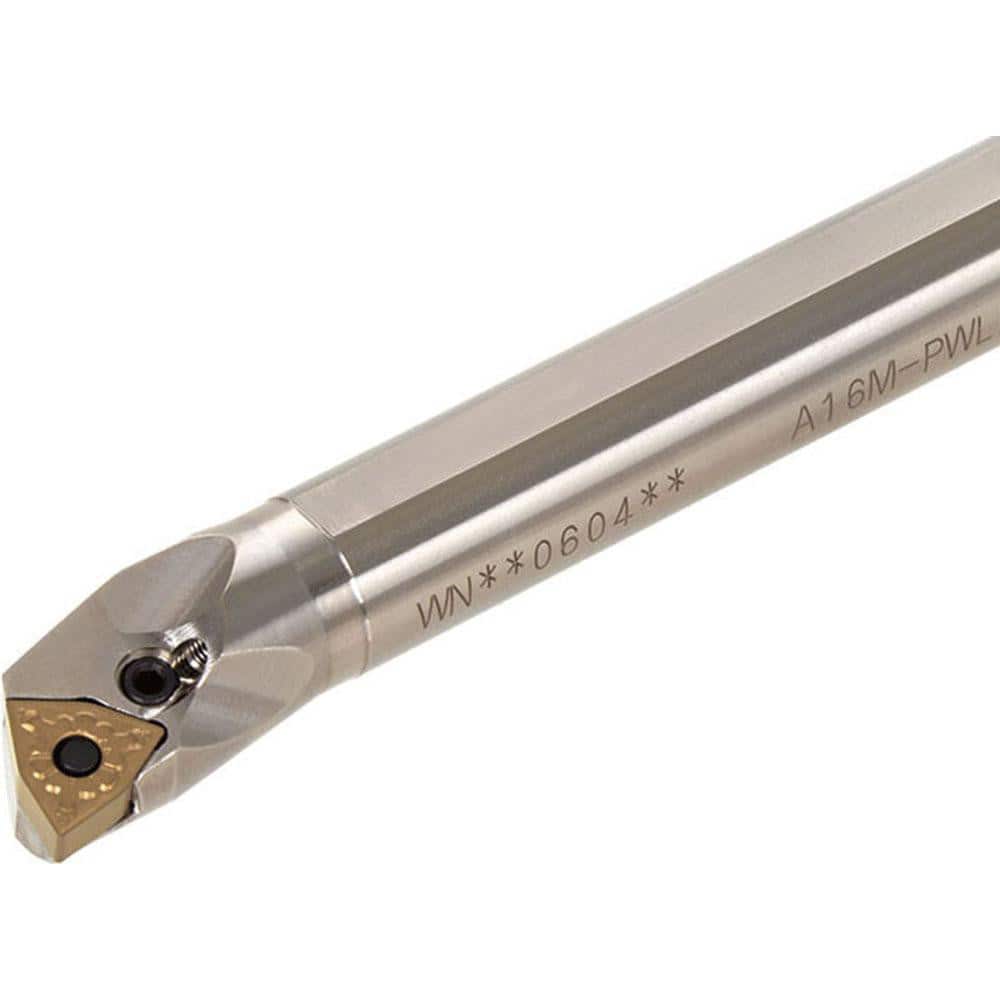

Indexable Boring Bar: A16M-PWLNL0604-D200, 20.00 mm Min Bore, 16.00 mm Shank Dia, 95.00° N/A Steel 150.0000″ OAL, Lever,
Item #: 09980145
Brand: Tungaloy
Model #: 6733308
Product Specifications
| Minimum Bore Diameter (mm) | 20.00 |
| Maximum Bore Depth (mm) | 64.00 |
| Toolholder Style | PWLN |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 16 |
| Overall Length (Decimal Inch) | 150.0000 |
| Overall Length (mm) | 150.00 |
| Overall Length (Inch) | 150 |
| Compatible Insert Size Code | 33 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Rake Angle | -17.00 |
| Lead Angle | 95.00 |
| Series | PWLN |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 11.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
