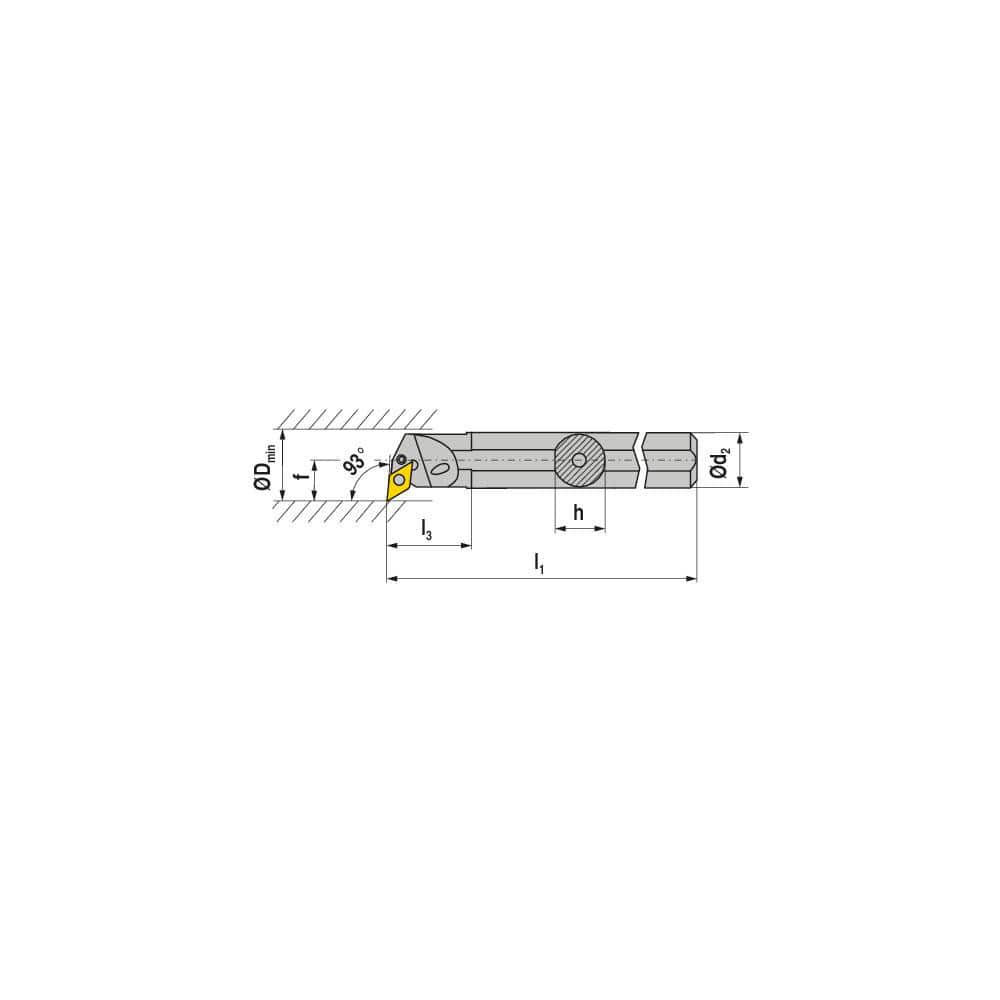

Indexable Boring Bar: E-A25R PDUNR 11, 31.00 mm Min Bore, 25.00 mm Shank Dia, 93.00° N/A Solid Carbide 200.0000″ OAL, Lever Clamp,
Item #: 09979246
Brand: Ceratizit
Model #: 70562025
Product Specifications
| Minimum Bore Diameter (mm) | 31.00 |
| Maximum Bore Depth (mm) | 175.00 |
| Toolholder Style | PDUNR |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 25.0000 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 25 |
| Overall Length (Decimal Inch) | 200.0000 |
| Overall Length (mm) | 200.00 |
| Overall Length (Inch) | 200 |
| Compatible Insert Size Code | DN..33. |
| Insert Holding Method | Lever Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-N |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 29.50 |
| Center to Cutting Edge (mm) | 17.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
