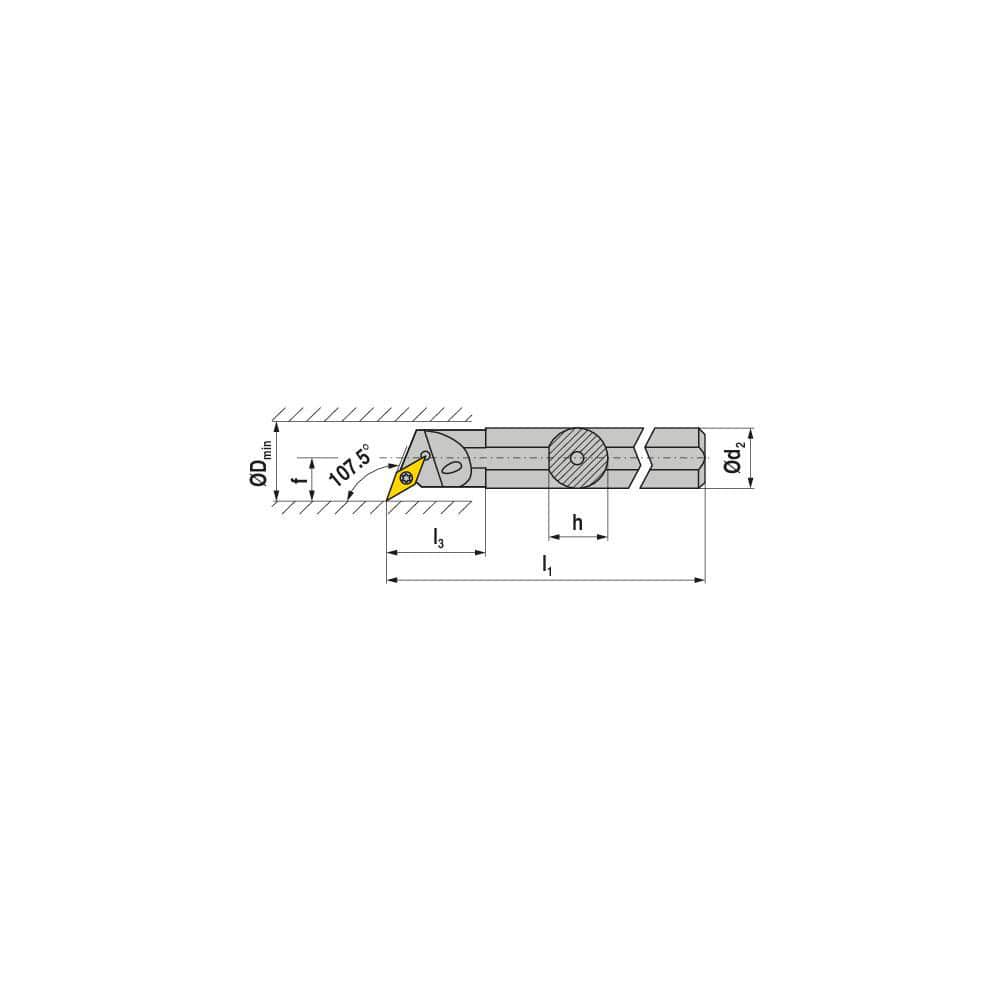

Indexable Boring Bar: S20U SVQCR 3, 107.50° N/A Steel 14.0000″ OAL, Screw Clamping,
Item #: 09978511
Brand: Ceratizit
Model #: 7872632030
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.6250 |
| Minimum Bore Diameter (Inch) | 1-5/8 |
| Maximum Bore Depth (Decimal Inch) | 5.0000 |
| Maximum Bore Depth (Inch) | 5 |
| Toolholder Style | SVQCR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | VC..33. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 7.00 |
| Lead Angle | 107.50 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.8752 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
