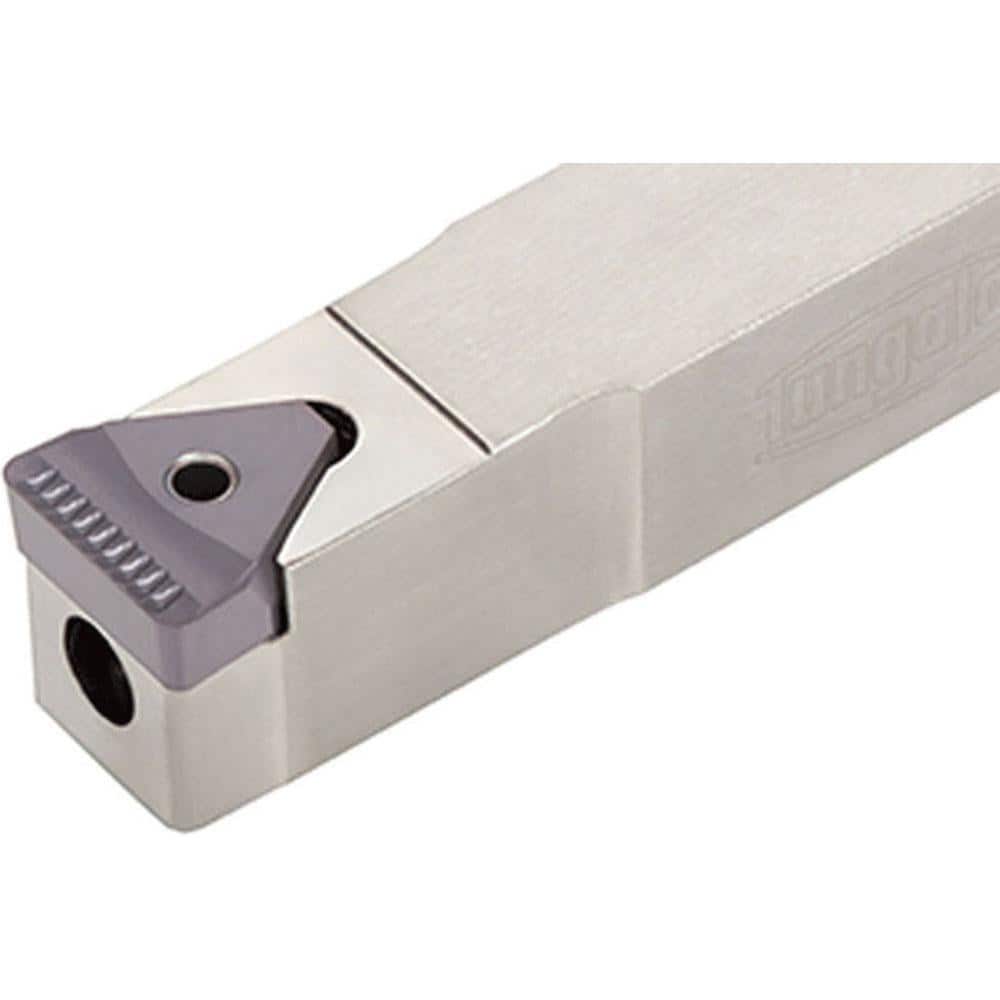

Indexable Grooving Toolholder: FPGN1616X-10T20, Uses 10 Inserts, No
Item #: 09972654
Brand: Tungaloy
Model #: 6706952
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 10 |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (mm) | 10.00 |
| Maximum Groove Width (mm) | 10.00 |
| Toolholder Style | FPG |
| Insert Holding Method | Lever |
| Compatible Insert Size Code | 10 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Series | FPG |
| Overall Length (mm) | 125.00 |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Head Height (Decimal Inch) | 16.0000 |
| Head Height (Inch) | 16 |
| Head Height (mm) | 16.00 |
| Head Length (mm) | 32.60 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
