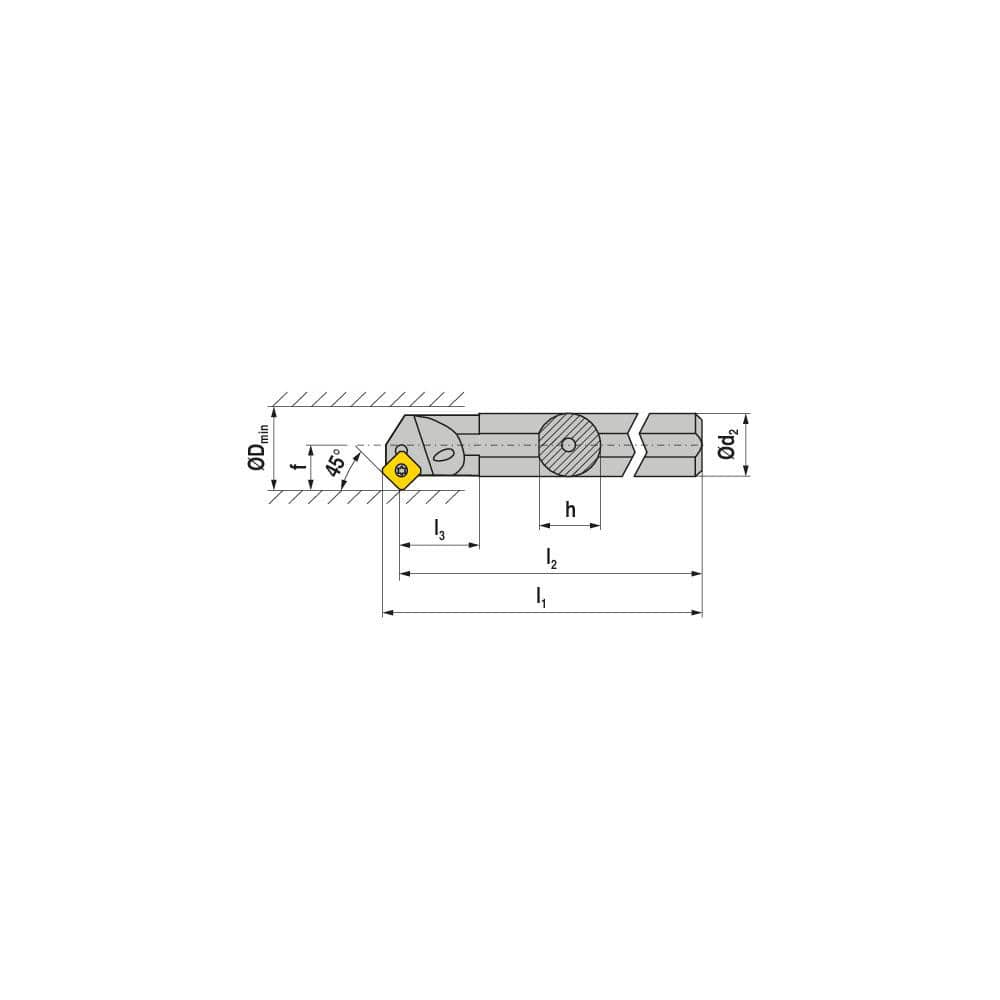

Indexable Boring Bar: A20Q SSSCR 09, 25.00 mm Min Bore, 20.00 mm Shank Dia, 45.00° N/A Steel 186.0000″ OAL, Screw Clamping,
Item #: 09972191
Brand: Ceratizit
Model #: 70720220
Product Specifications
| Minimum Bore Diameter (mm) | 25.00 |
| Maximum Bore Depth (mm) | 80.00 |
| Toolholder Style | SSSCR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Inch) | 20 |
| Overall Length (Decimal Inch) | 186.0000 |
| Overall Length (mm) | 186.00 |
| Overall Length (Inch) | 186 |
| Compatible Insert Size Code | SC..32.5. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Square |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 7.00 |
| Lead Angle | 45.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1562 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 23.00 |
| Center to Cutting Edge (mm) | 13.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
