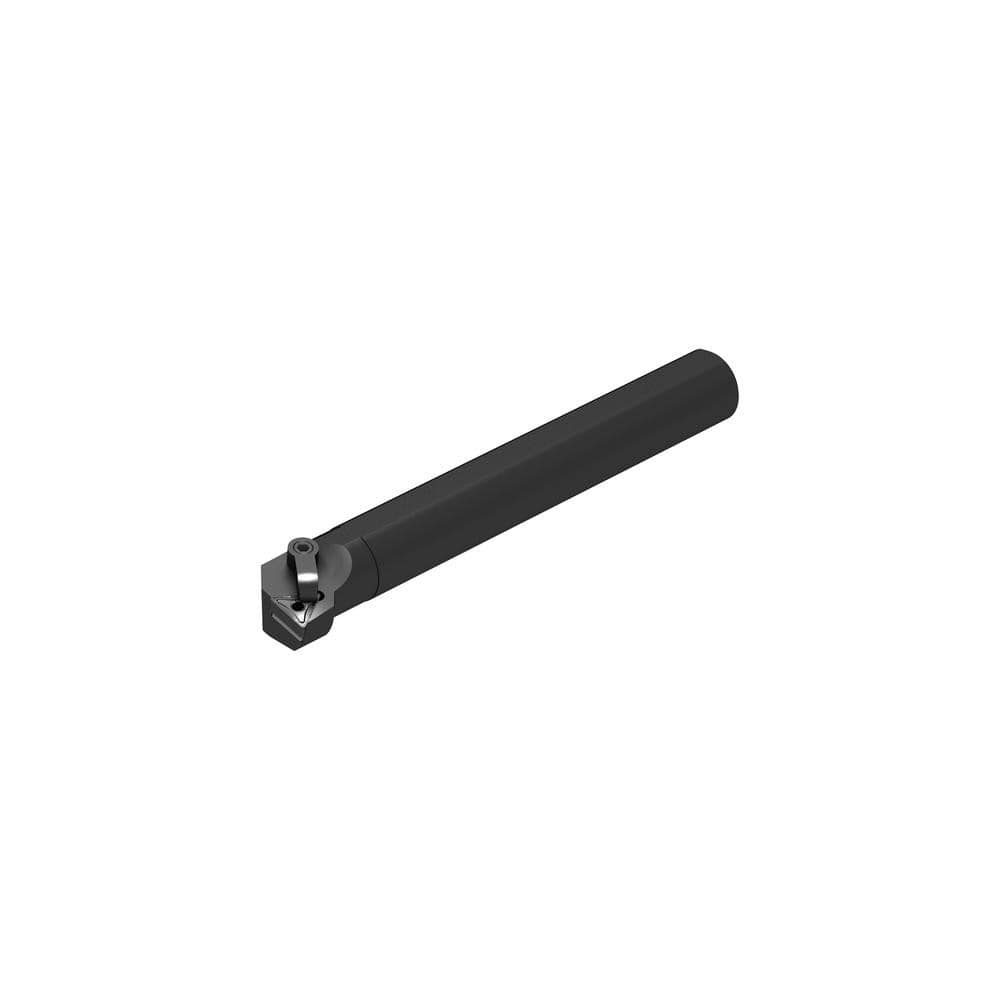

Indexable Boring Bar: S24U MTFNR 3, 90.00° N/A Steel 14.0000″ OAL, Clamp & Pin,
Item #: 09966755
Brand: Ceratizit
Model #: 7871032434
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.7800 |
| Maximum Bore Depth (Decimal Inch) | 6.0000 |
| Maximum Bore Depth (Inch) | 6 |
| Toolholder Style | MTFNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | TN..33. |
| Insert Holding Method | Pin; Clamp |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 90.00 |
| Series | MaxiLock-M |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.6400 |
| Center to Cutting Edge (Decimal Inch) | 0.8902 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
