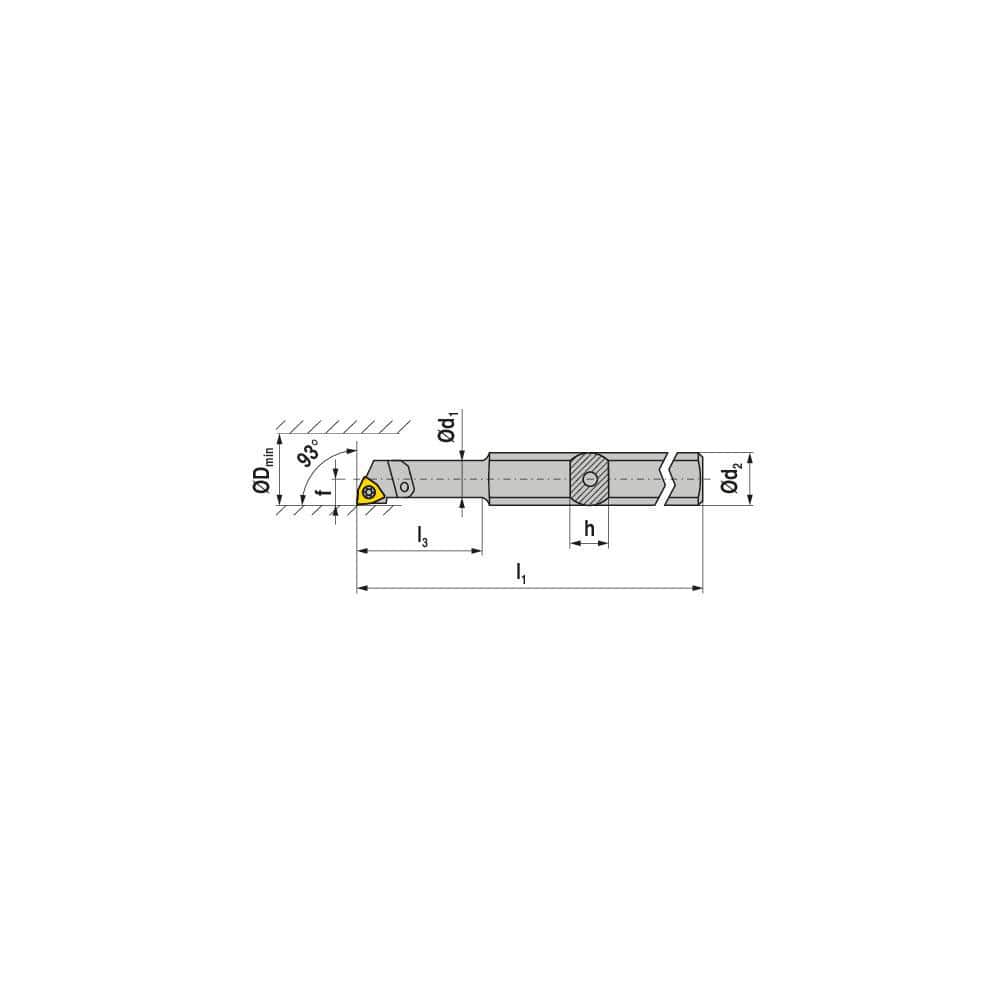

Indexable Boring Bar: E-A0508H SWUCR 02, 5.80 mm Min Bore, 8.00 mm Shank Dia, 93.00° N/A Solid Carbide 100.0000″ OAL, Screw Clamping,
Item #: 09949033
Brand: Ceratizit
Model #: 70742005
Product Specifications
| Minimum Bore Diameter (mm) | 5.80 |
| Maximum Bore Depth (mm) | 56.00 |
| Toolholder Style | SWUCR |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Inch) | 8 |
| Overall Length (Decimal Inch) | 100.0000 |
| Overall Length (mm) | 100.00 |
| Overall Length (Inch) | 100 |
| Compatible Insert Size Code | WC..1.21.5. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 7.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Decimal Inch) | 0.1562 |
| Compatible Insert Thickness (Decimal Inch) | 0.0625 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 6.90 |
| Center to Cutting Edge (mm) | 29.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
