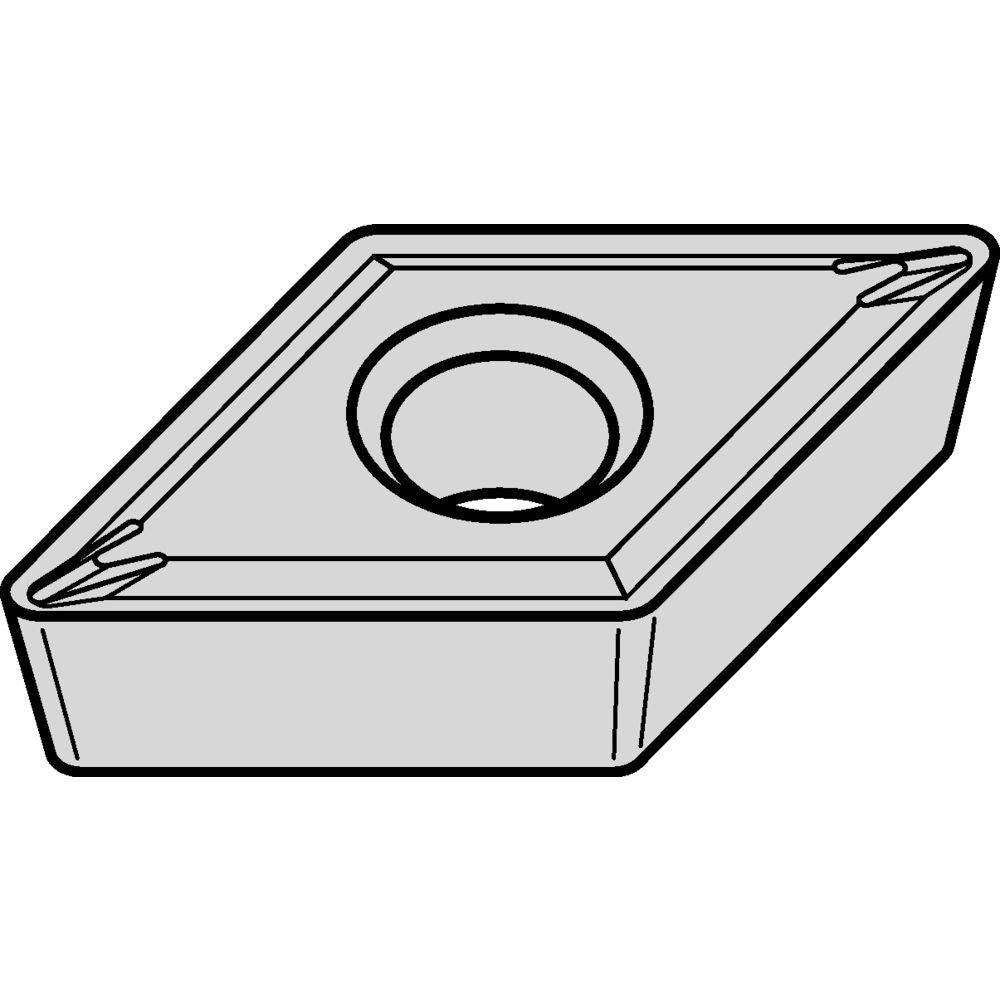

Turning Insert: DCMT32505LF KCP25C, Carbide
Item #: 84696590
Brand: Kennametal
Model #: 7088783
Product Specifications
| ANSI Insert Code | DCMT |
| ISO Insert Code | DCMT |
| Relief Angle | 7.000 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | .008 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | Screw-On Inserts |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Diamond 55° |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4578 |
| Insert Length (mm) | 11.63 |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3250 |
| Country of Origin | UNITED STATES |
