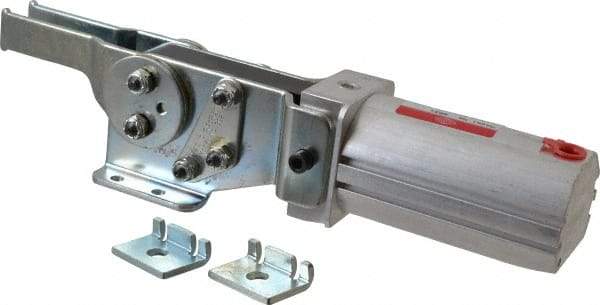

De-Sta-Co - 390 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp - 1/8 NPT Port, 145 Max psi, 90° Bar Opening, 39.62mm Height Under Bar
Item #: 09760448
Brand: De-Sta-Co
Model #: 8021
Exact Tooling IR#: 04
Features and Benefits
Horizontal mounts indicate that the cylinder is mounted parallel to the clamping bar's closed position.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Horizontal |
| Holding Capacity - Inner (N) | 1735 |
| Holding Capacity - Inner (Lb.) | 390 |
| Height Under Bar (mm) | 39.62 |
| Height Under Bar (Decimal Inch) | 1.56 |
| Port Size | 1/8 NPT |
| Bar Opening (Degrees) | 90 |
| Length Distance Between Mount Holes (mm) | 20.07 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7900 |
| Width Distance Between Mount Holes (mm) | 38.10 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.5000 |
| Clamping Force - Inner (N) | 760 |
| Clamping Force - Inner (Lb.) | 169 |
| Bar Extension (Decimal Inch) | 0.4400 |
| Bar Extension (mm) | 11.18 |
| Overall Open Length (mm) | 193.20 |
| Overall Open Length (Decimal Inch) | 7.61 |
| Overall Closed Length (mm) | 250.40 |
| Overall Closed Length (Inch) | 9-5/16 |
| Overall Closed Length (Decimal Inch) | 9.86 |
| Overall Open Height (Decimal Inch) | 4.44 |
| Overall Open Height (mm) | 112.80 |
| Overall Closed Height (mm) | 60.90 |
| Overall Closed Height (Inch) | 2-3/16 |
| Overall Closed Height (Decimal Inch) | 2.40 |
| Outer Load Capacity (N) | 1135 |
| Outer Clamping Force (N) | 449 |
| Outer Clamping Force (Lb.) | 100 |
| Air Requirement (psi) | 80 to 85 |
| Maximum Air Pressure (psig) | 145.00 |
| Maximum Air Pressure (bar) | 10.00 |
| Mounting Hole Size (mm) | 5.33 |
| Mounting Hole Size (Decimal Inch) | 0.2100 |
| Bar Style | Solid |
| Bar End Type | Open |
| Maximum Mechanical Advantage | 1.3:1; 2.2:1 |
| Sensor Compatibility | Round; T-Slot |
| Cylinder Bore Size (mm) | 32.00 |
| Cylinder Bore Size (Decimal Inch) | 1.2600 |
| Spindle Thread Size | 1/4; M6 |
| Maximum Operating Temperature (C) | 90.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Includes | Flanged Base |
