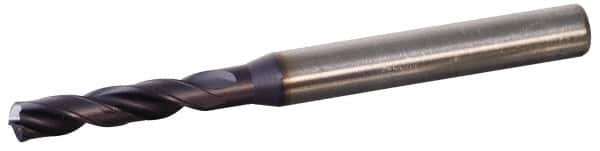

Kennametal - 0.5315" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 2.362" Flute Length, 4.213" OAL, Standard Point, Straight Shank, Through Coolant
Item #: 09590316
Brand: Kennametal
Model #: 1913550
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (Decimal Inch) | 2.3620 |
| Overall Length (Decimal Inch) | 4.2130 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.5510 |
| Specification Designation | DIN |
| Maximum Drilling Depth (Decimal Inch) | 1.6930 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.7720 |
| Threaded Shank | No |
| Drill Point Length (mm) | 2.30 |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Specification Number | DIN 6537K |
| Web Thinning | Web-Thinned |
| Series/List | B976A |
