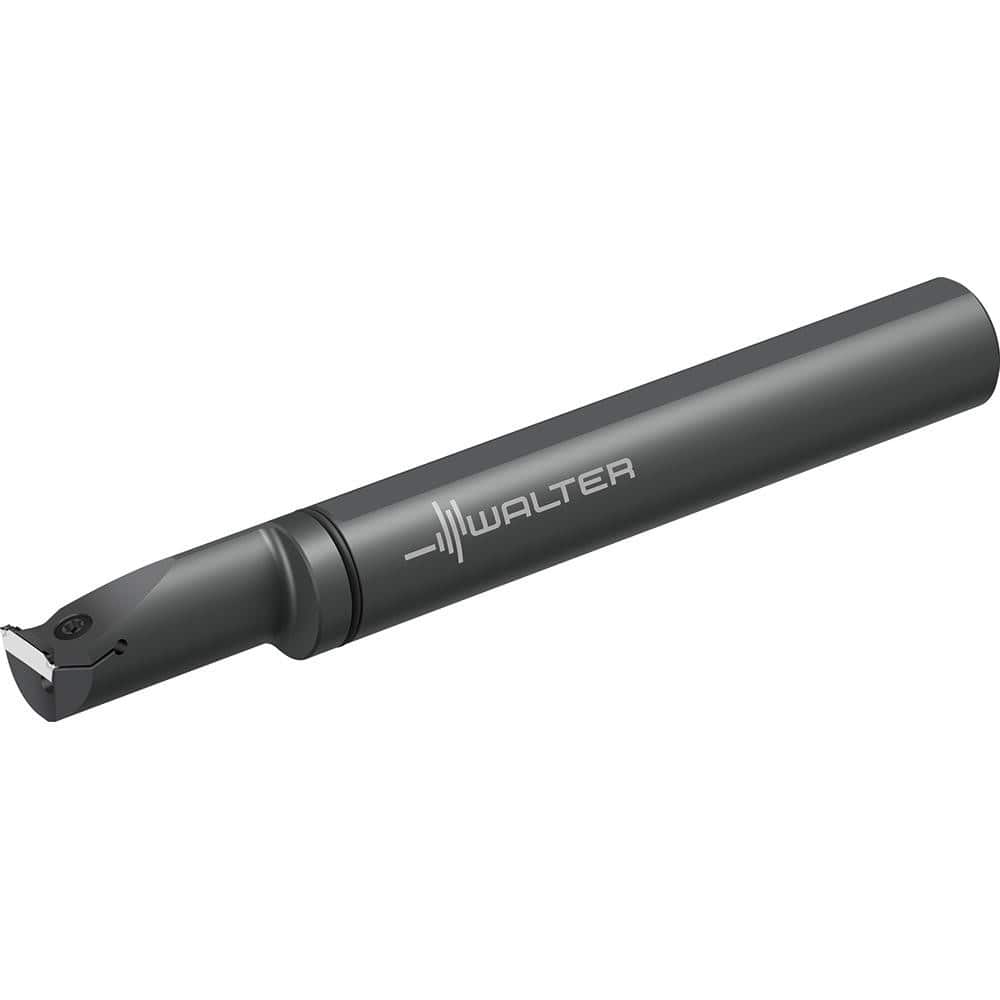

Indexable Grooving/Cut-Off Toolholders; Cutting Direction: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.3150; Maximum Groove Width (Decimal Inch): 0.1280; Minimum Groove Width (Decimal Inch): 0.1180; Toolholder Style: G4221; Tool Material: Steel; Ins
Item #: 09528332
Brand: Walter
Model #: 8120946
Product Specifications
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Groove Width (Decimal Inch) | 0.1280 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | G4221 |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DX18-3 |
| Shank Length (Decimal Inch) | 6.0040 |
| Series | G4221-20-32-L-DX-P |
| Overall Length (mm) | 7.88 |
| Overall Length (Decimal Inch) | 7.8800 |
| Cutting Tool Application | Grooving; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3230 |
| Head Length (Decimal Inch) | 1.8210 |
| Primary Workpiece Material | Super Alloys; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coolant Through | Yes |
